The main frame of this hydraulic low bed trailer is crafted from high strength alloy steel, boasting excellent tensile strength and durability. By integrating reinforced main beams and crosswise anti-torsion supports, it forms a stable load-bearing structure that maintains hydraulic low bed trailer shape even under full load conditions.
When transporting 60 tons of heavy equipment , the frame remains sturdy without any sagging. The hydraulic low bed trailer has passed strict static load tests meeting industry high standards, and its impact resistance on Rwanda’s uneven rural roads has exceeded basic requirements in dynamic performance assessments.
Hydraulic Low Bed Trailer for Sale in Rwanda
Hydraulic Low Bed Trailer for Sale in Rwanda
Hydraulic Low Bed Trailer for Sale in Rwanda
Hydraulic Low Bed Trailer for Sale in Rwanda
Hydraulic Low Bed Trailer for Sale in Rwanda
Loading capacity: 60 ton

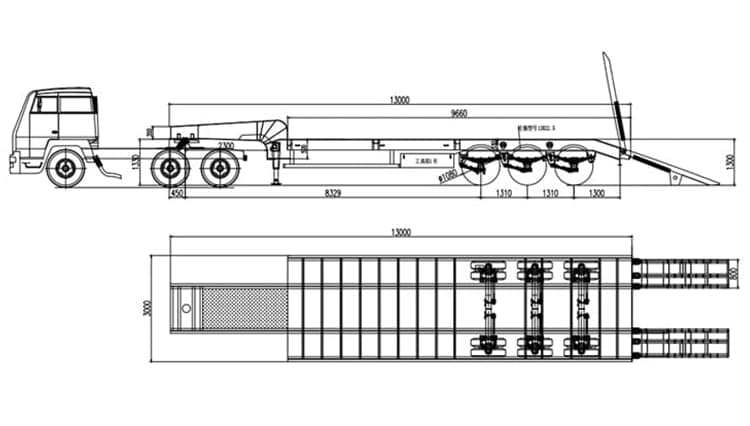

Overall dimension: 13000mm * 3000mm *3750mm
Axles: 3 axles

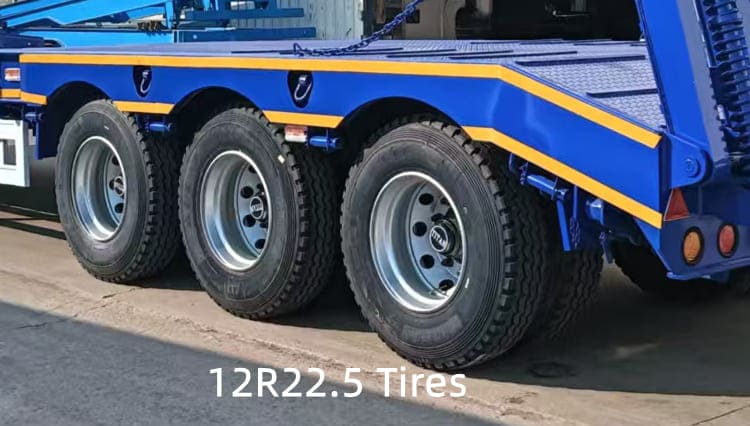

Tire: 12 units, 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

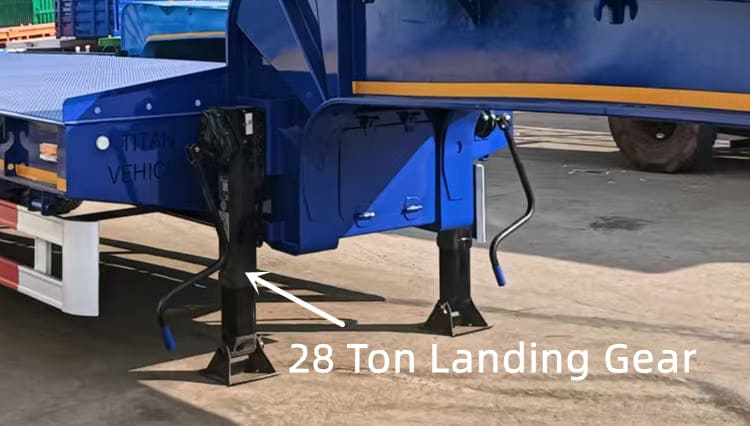

Landing gear: JOST brand

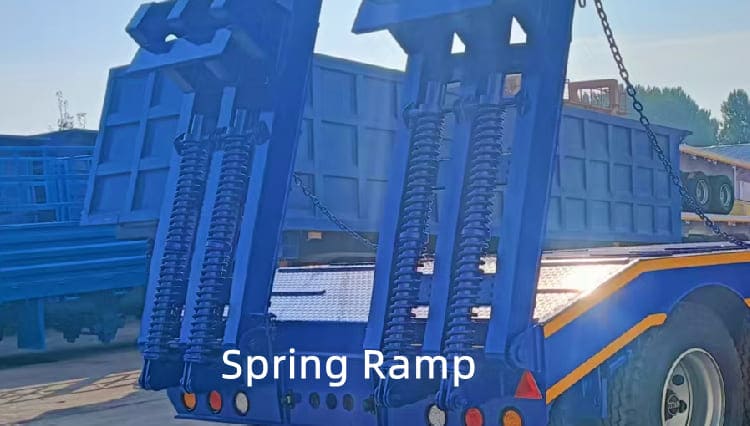

Ramp: Spring Ramp
Kingpin: JOST brand
Valve: WABCO valve
Light: LED light
Ramp: Spring Ramp
Hydraulic Low Bed Trailer for Sale in Rwanda
Equipped with adjustable load bearing brackets, this hydraulic low bed trailer can accommodate various sizes and shapes of machinery, catering to the needs of both small construction teams and large-scale engineering projects in Rwanda. For long distance transportation across Rwanda’s diverse terrain, an optional anti-skid rubber mat can be installed on the hydraulic low bed to prevent equipment from slipping during transit.
The frame of the hydraulic low bed trailer adopts integral welding technology, with the main beam featuring a double web H-shaped cross section connected by transverse reinforcement beams, forming a rigid load-bearing framework. Key welds are completed by automatic robotic welding, and all have passed ultrasonic flaw detection with no defects, ensuring a service life of up to 15 years. This is particularly crucial for Rwanda’s budget-conscious construction companies that rely on long-term equipment investments. Unlike cheaper alternatives that require frequent frame repairs due to Rwanda’s rough terrain, this design minimizes downtime and keeps projects on track.
The surface of the hydraulic low bed trailer undergoes sandblasting derusting treatment, followed by two coats of epoxy zinc-rich primer and a UV-resistant polyurethane topcoat. This advanced coating system maintains hydraulic low bed trailer gloss under Rwanda’s intense sunlight and resists corrosion from construction site dust and occasional rains, forming a tight protective film that extends the hydraulic low bed trailer’s service life.
Equipped with a multi stage braking system, the hydraulic low bed trailer delivers reliable stopping power on steep mountain roads, reducing collision risks in Rwanda’s hilly regions. High-strength tie down rails and straps form a secure fixation system for cargo, preventing shifts and rollovers during transportation. Featuring an advanced hydraulic lowering structure, the hydraulic low bed trailer for sale in Rwanda enables convenient and efficient loading and unloading of large machinery, significantly improving work efficiency on construction sites.
The hydraulic low bed trailer is also fitted with high visibility LED warning lights and reflective strips, ensuring excellent visibility in fog, dusk, or low light conditions—essential for safe travel on Rwanda’s roads with frequent unexpected traffic. Driver safety is further enhanced by rear blind spot alerts, facilitating navigation on narrow rural paths. The hydraulic low bed trailer’s tires feature a deep tread pattern, enhancing grip on gravel roads and muddy construction sites common in Rwanda.
Before shipment, the hydraulic low bed trailer receives multi-layer comprehensive protection to ensure intact delivery to Rwanda: High-elasticity foam blocks are used to fill the gaps between the hydraulic low bed trailer’s protruding parts (such as hydraulic pipes and control boxes) and the container, eliminating any shaking space during transit. Finally, the inner surface of the container is covered with a waterproof and moisture proof film to isolate external rainwater and humid air, fully adapting to Rwanda’s transportation and storage environments.
