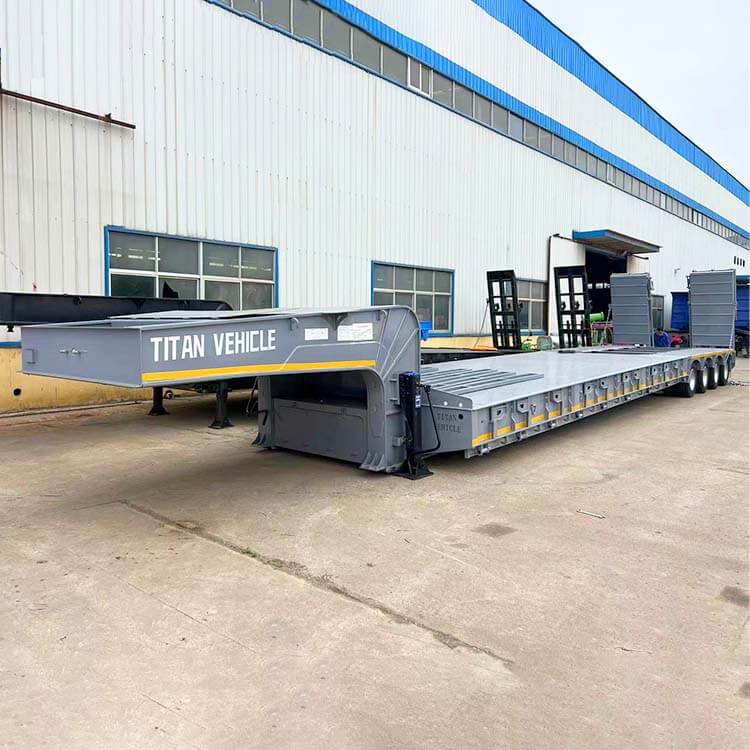

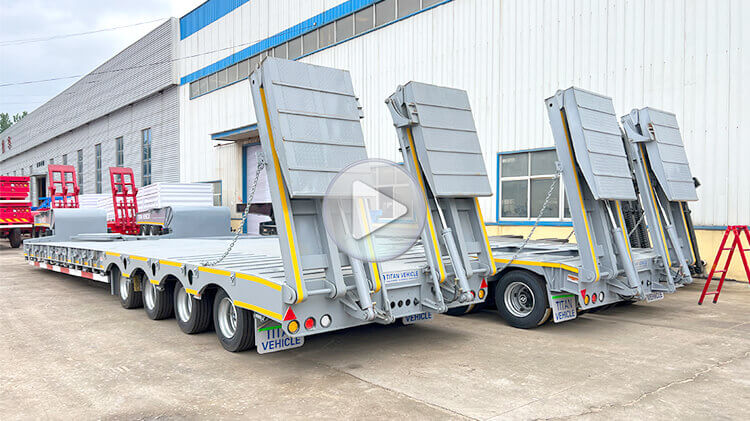

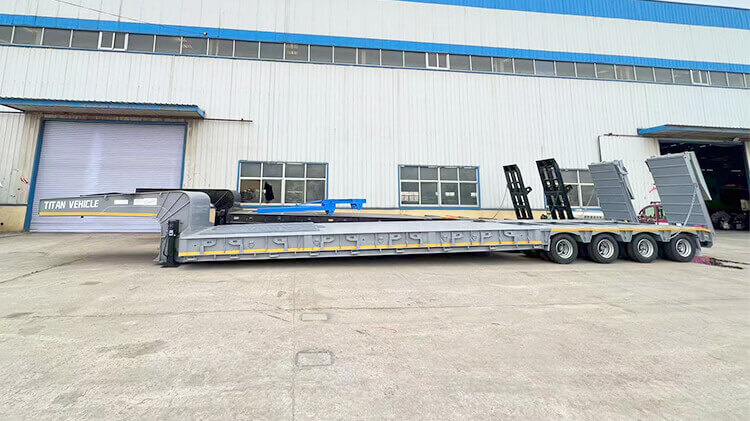

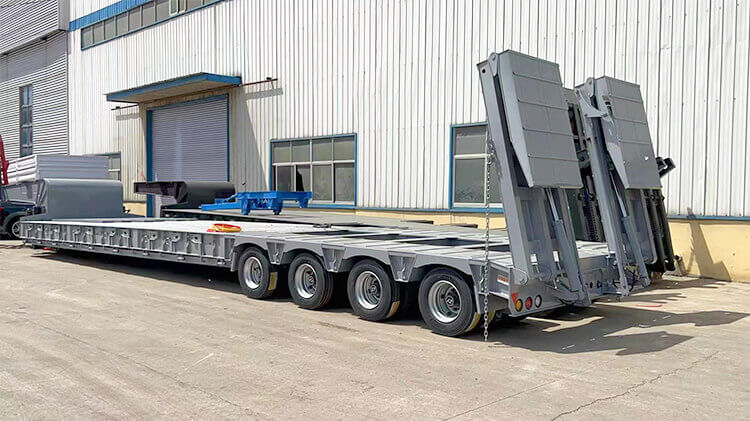

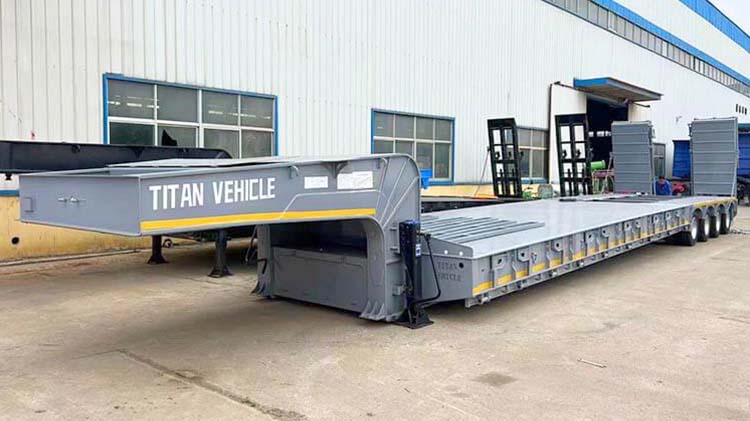

This 4 line 8 axle lowbed trailer with a hydraulic folding ramp is a heavy-duty semi-trailer specially designed for transporting large machinery and goods. Its load capacity can reach about 150 tons.
This lowbed trailer for sale adopts high-quality high-strength steel materials and professional structural design, which makes it more durable and can carry more and heavier goods, so as to achieve efficient transportation.
The stability of the 4 line 8 axle lowbed trailer is very good. The bottom of the semi-trailer is relatively flat and the center of gravity is low, which can enhance the overall stability of the vehicle and effectively reduce the probability of accidents such as rollovers.

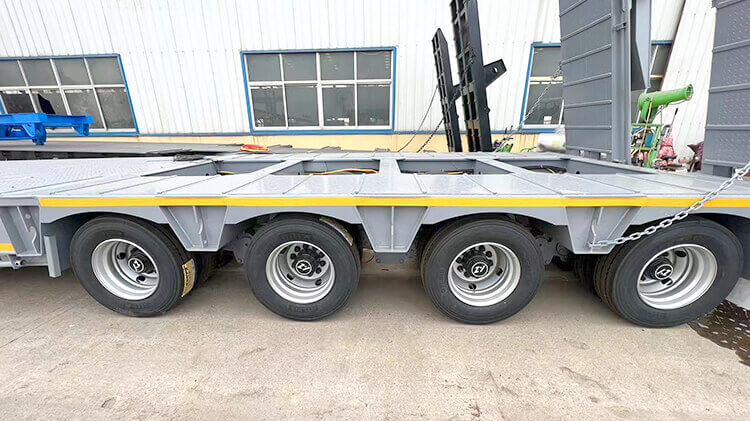

The 4 line 8 axle lowbed trailer in Rwanda is equipped with more tires and axles. On the one hand, the load capacity of the semi trailer is obviously increased, and on the other hand, the stability of the trailer is greatly improved. While carrying more heavy machinery and goods, it can also ensure a more stable driving under different road conditions.

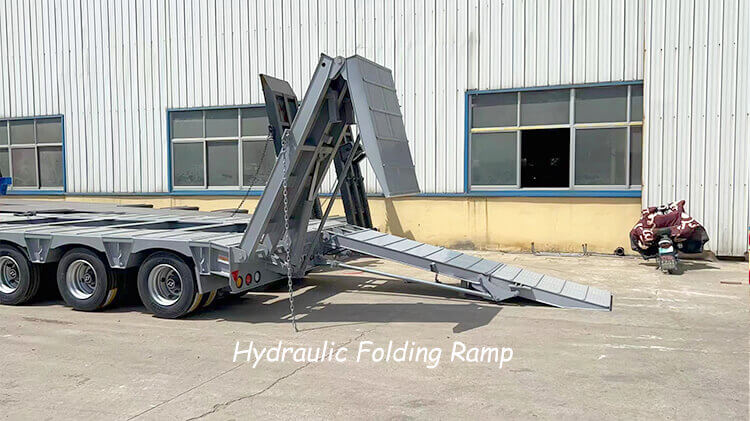

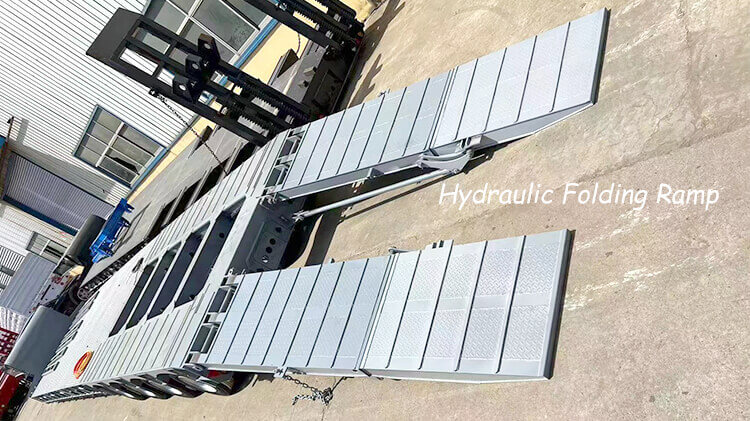

This 4 line 8 axle lowbed trailer in Rwanda hydraulic folding ramp can reduce the need to use lifting equipment or manual handling when transporting goods. It can improve efficiency when loading and unloading goods, saving time and labor costs.
The hydraulic folding ramp of the 4 line 8 axle lowbed trailer from Titan can reduce the height of the goods when they land from the vehicle, reduce the slope of the heavy machinery equipment to the loading platform, and effectively reduce the difficulty of loading and unloading the heavy equipment. Improve transportation efficiency and safety.
Model: 4 line 8 axle low bed trailer for sale in Rwanda
Dimension: 13000*3000*1700mm( depends on final deisign )
Capacity: ≤150T
Axles: 4 line 8 axle, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 10pcs,16mm thick, 900mm wide
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Chinese Standard 28tons or JOST
If you are interested in this 4 line 8 axle low bed trailer, welcome to leave your message!
We will provide you more details, quotations, catalogs, drawings, and videos!
