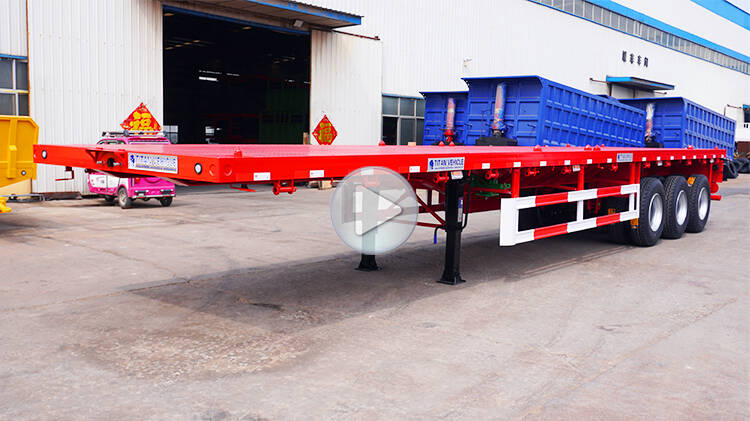

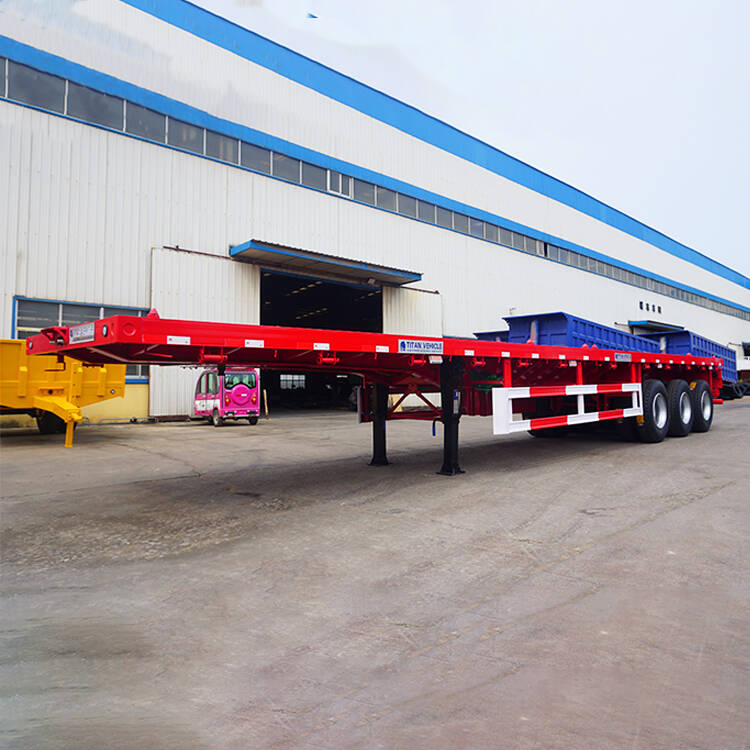

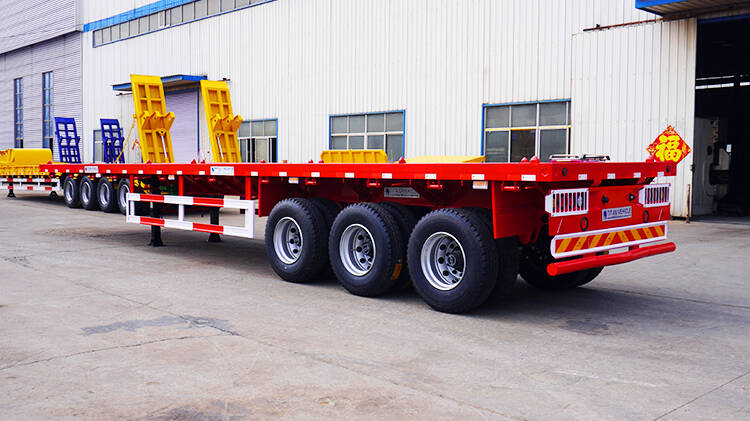

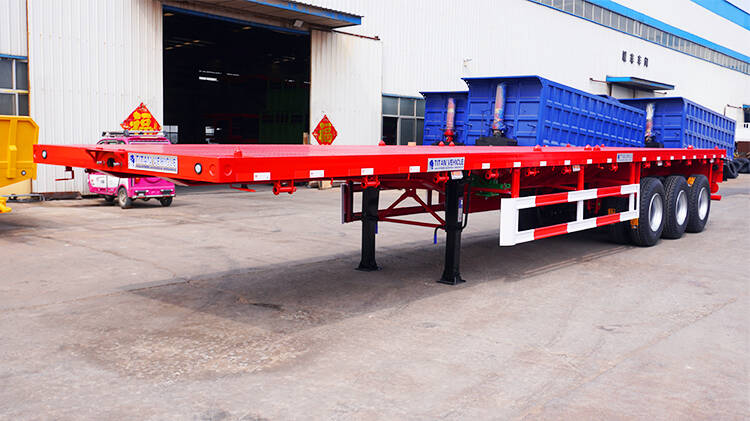

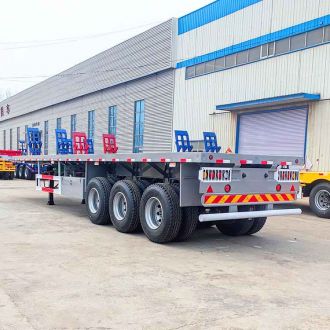

This 40 ft 3 axle flat bed trailer dimension is 12500m*2500*1530mm. It can bear up to 60 tons. Additional reinforcements are carried out in many places of the whole 3 axle trailer, with stronger bearing capacity and longer service life.
40 Ft 3 Axle Flat Bed Trailer for Sale Price in Rwanda
40 Ft 3 Axle Flat Bed Trailer for Sale Price in Rwanda
40 Ft 3 Axle Flat Bed Trailer for Sale Price in Rwanda
1. 3 axle trailer uses 3mm-thick T700 HSS checked plate, it has a higher load-bearing capacity and great anti-slip and wear resistance.
2. 3 axle trailer use the automatic submerged arc welding process to weld the main beam, ensuring the unity of the main beam and makes it more durable.

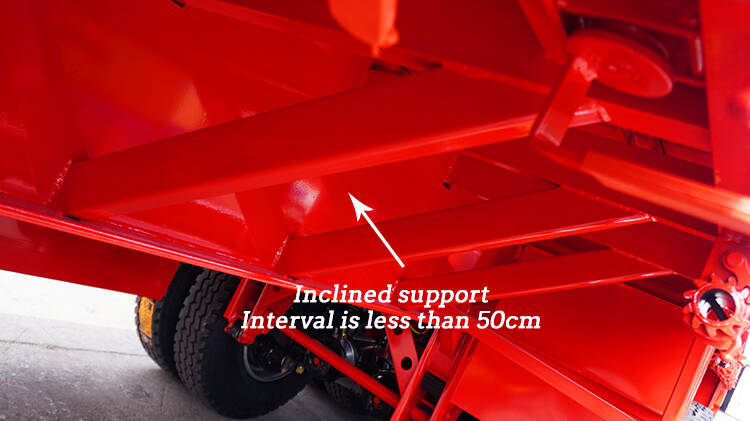

3. There are welded inclined supports on both sides of main beam, and the interval between each inclined support is no more than 50cm, sharing more load-bearing for the main beam and the platform, ensuring a longer life of the 40 ft trailer.
4. Many of our 40 ft trailer accessories are selected from internationally renowned brands with guaranteed quality.
Model: 3 axle trailer
Dimension: 12500*2500*1530mm
Loading capacity: ≤60T
Axles: 3 axles, 13T axle ( with 16T braking pads )

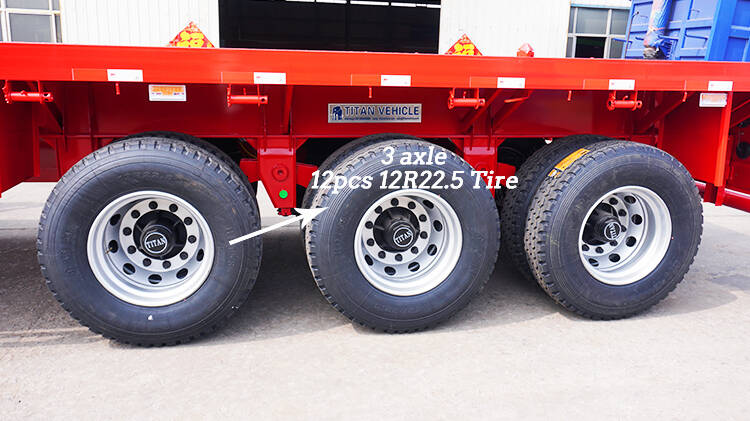

Tire: 12 pcs, 12R22.5
Rim: 12 pcs, 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Platform: 3mm-thick HSS plate
Main Beam: Q345B steel, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Height: 500mm
Side Beam: Q345B steel
Twist Locks: 12 sets (lifting or screw type)
King Pin: JOST brand 2.0inch or 3.5inch
Landing Gear: Standard 28tons (JOST optional)
Brake system: WABCO
