TITAN VEHICLE is a professional production manufacturer with rich experience and manufacturing advantages.
This lowbed trailer is mainly used to transport heavy equipment and goods such as excavators, bulldozers, road construction equipment, large rocks, and wood. This model can hold up to 60 tons.

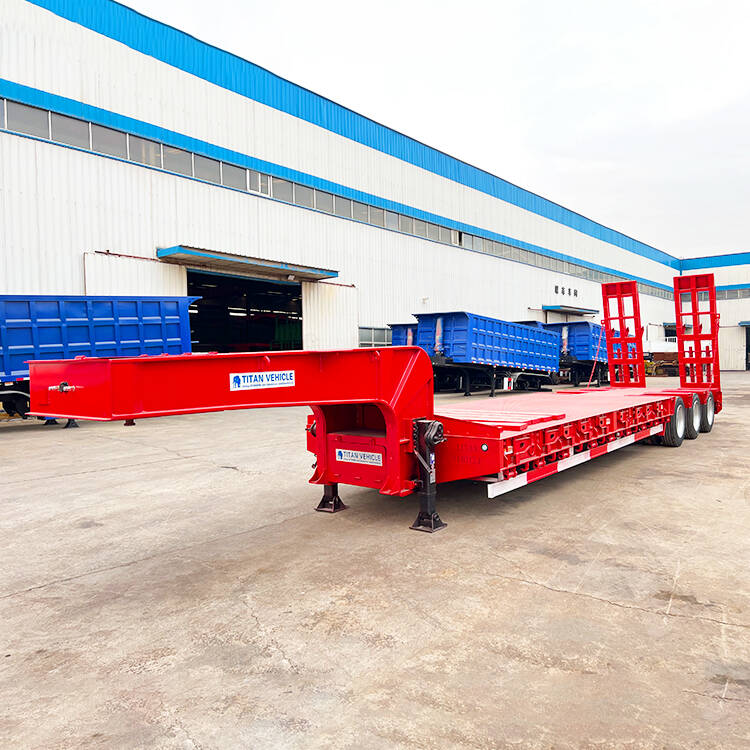

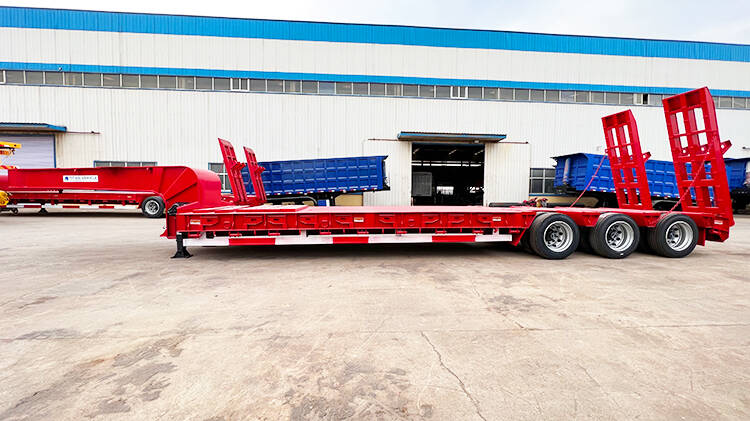

60 Ton 3 Axle Lowbed Trailer for Sale in MICD Rwanda
60 Ton 3 Axle Lowbed Trailer for Sale in MICD Rwanda
60 Ton 3 Axle Lowbed Trailer for Sale in MICD Rwanda
1. The platform of the 3 axle lowbed trailer uses 5mm thickened high-strength board, which is strong and durable. In addition, the diamond pattern on the platform greatly increases the anti-skid and wear resistance of the platform.

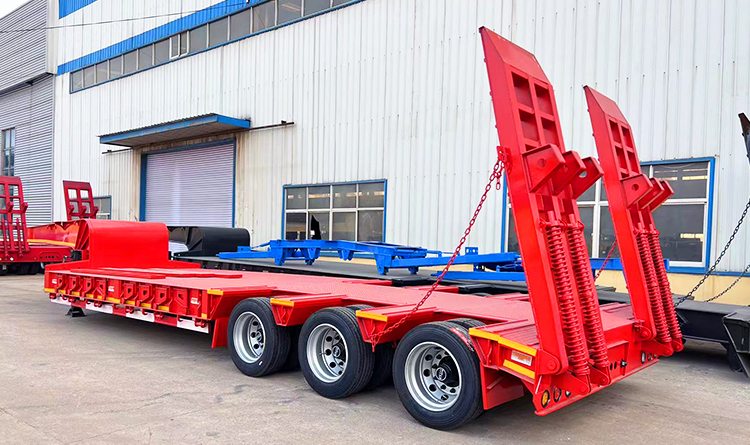

2. This lowbed trailer uses a spring ramp, only one person can easily control the ramp by hand.

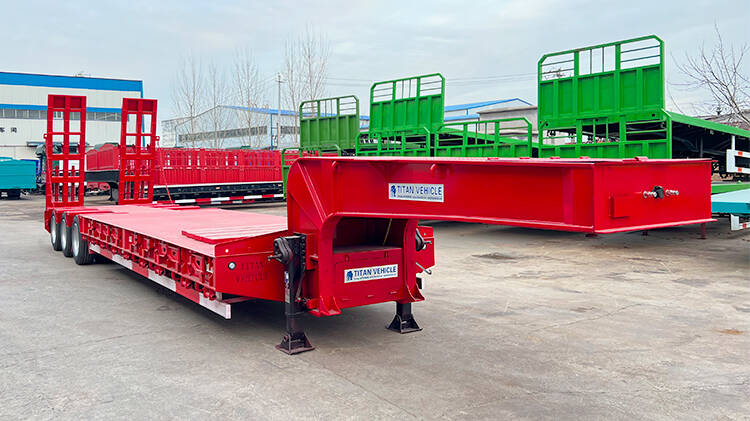

3. The gooseneck adopts a special angle downward design, so that the lowbed trailer is not easy to fall over when transporting heavy equipment.
Model: 60 Ton 3 Axle Lowbed Trailer
Dimension: 13000*3000*1700mm
Capacity: 60T

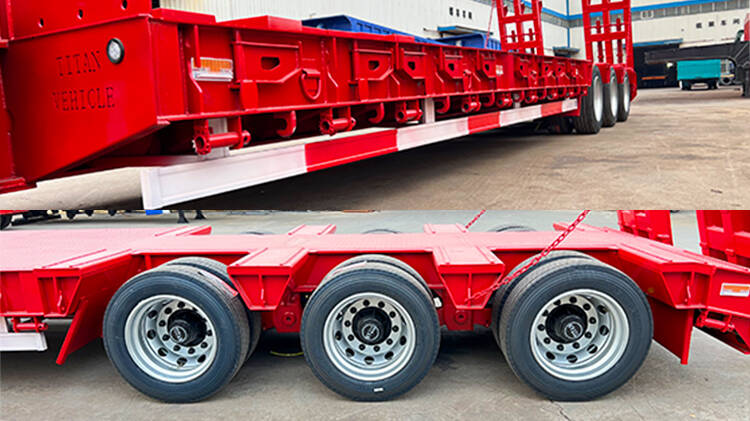

Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension
Platform: 5mm checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Standard 28tons or JOST
