As a transport vehicle, the side wall trailer can load a wide variety of goods, and many super-long, super-wide, and super-high goods can almost be loaded, such as steel, wood, and stone. And there is less obstruction to the transportation and loading and unloading of large equipment, so almost all goods within the acceptable range can be loaded.

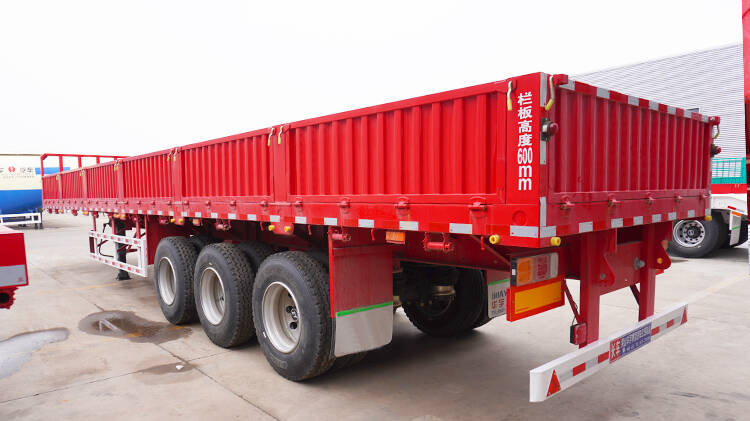

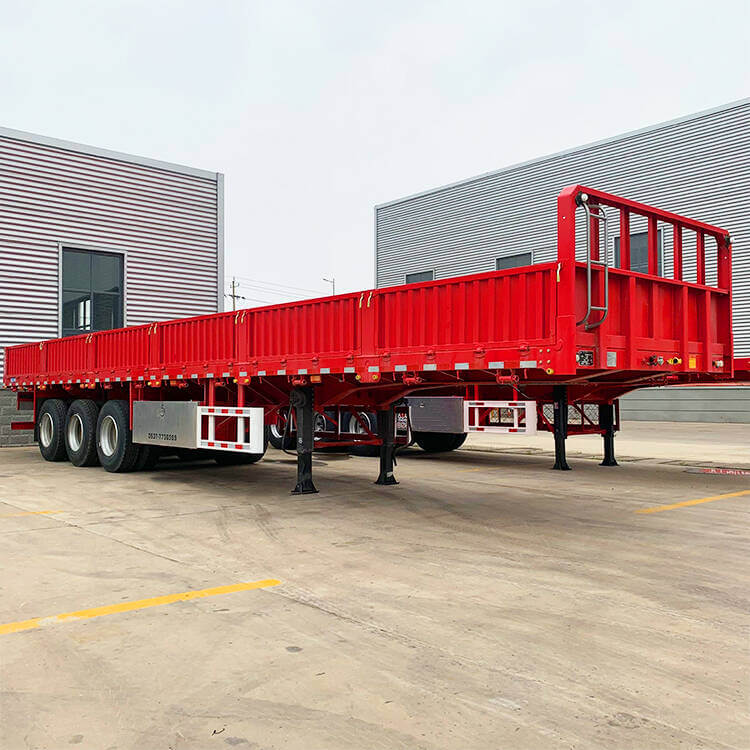

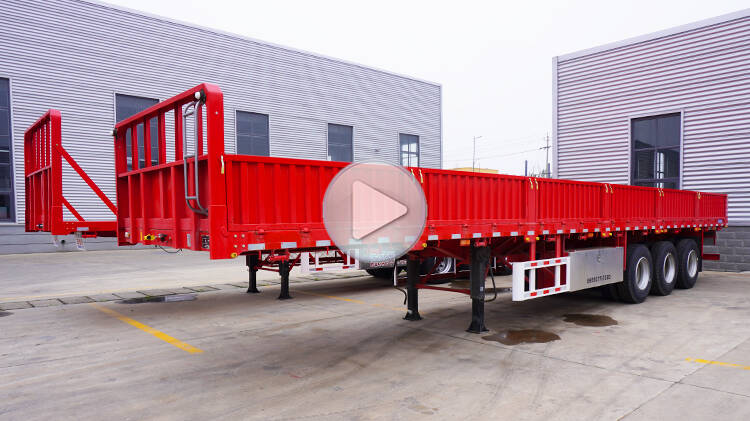

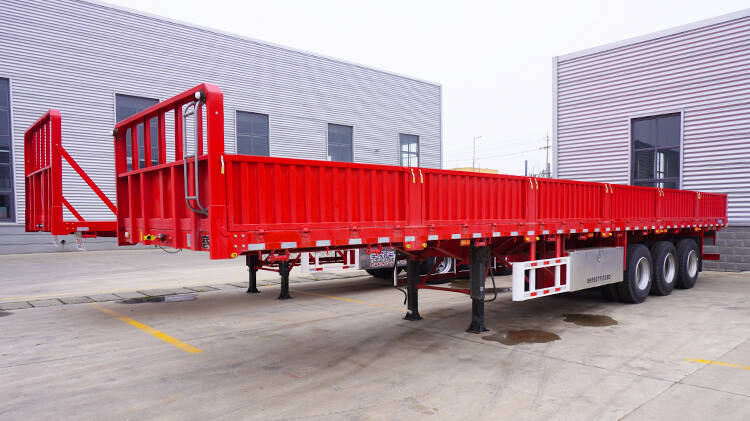

3 Axle Side Wall Trailer for Sale in Rwanda
3 Axle Side Wall Trailer for Sale in Rwanda
1. The body of the side wall trailer is made of high-quality steel, advanced technology and strict production process.
2. The side wall trailer for sale has a reasonable body structure, reliable performance, easy operation and beautiful appearance. The frames are all beam-through structures, the longitudinal beams are straight or gooseneck, the webs are welded with thickened manganese plates, the beams penetrate the longitudinal beams and are welded as a whole, making the body more solid and reliable.

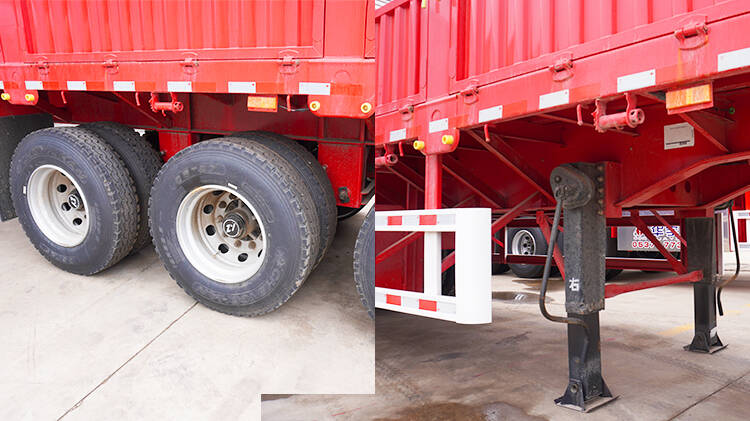

3. The suspension structure of the 3 axle side wall trailer is reasonable, with strong rigidity and strength, which can support more loads and reduce more impacts.
Dimension(mm): 12500mm*2500mm*2350mm（depends on final design）
Trailer Sides: 600mm sidewall
Loading capacity(ton): ≤40T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Air suspension optional)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
Voltage: 24V
