This drop side wall semi trailer is a common and hot-selling cargo transport vehicle, its structure is mainly composed of car body, chassis, suspension, tires, axles, braking system, electrical system and other components.

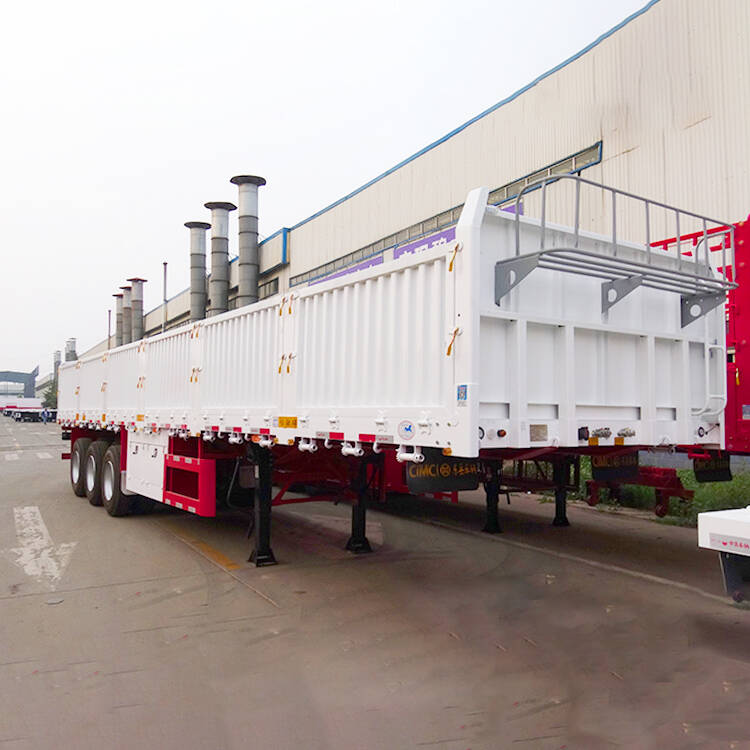

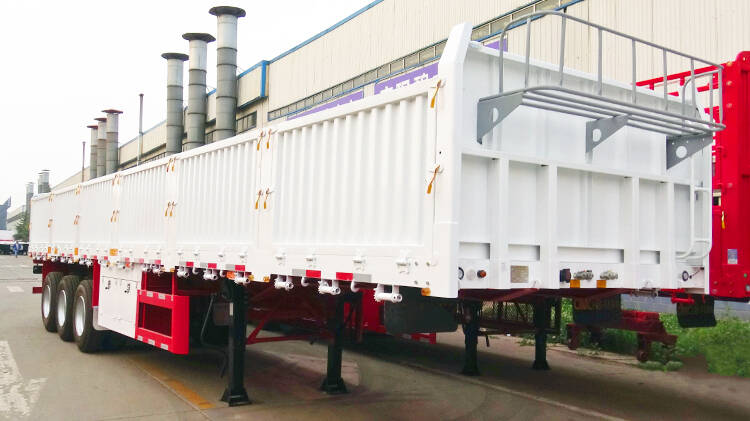

3 Axle Drop Side Wall Semi Trailer for Sale in Rwanda
3 Axle Drop Side Wall Semi Trailer for Sale in Rwanda
1. The body of the drop side wall semi trailer is made of high-strength steel. The tensile strength of high-strength steel is more than twice that of ordinary manganese steel. Under the condition of constant strength, the weight of high-strength steel semi-trailer is much lighter than that of ordinary steel light semi-trailer.
2. The high-strength steel used in the 3 axle drop side wall semi trailer reduces the maintenance cost of the vehicle and improves the service life of the vehicle.
3. The high wall of drop side wall semi trailer for sale can increase more cargo capacity and increase the customer's transportation profit.
Dimension(mm): 12500x2500x2350mm
Trailer Sides: 800mm sidewall
Loading capacity(ton): ≤50T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch

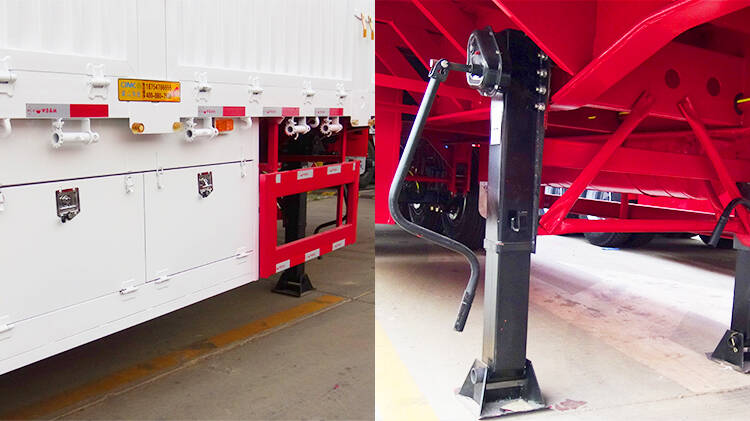

Landing Gear: JOST brand D200T or Chinese brand 28tons
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
Welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos about the Drop Side Wall Semi Trailer for you!
