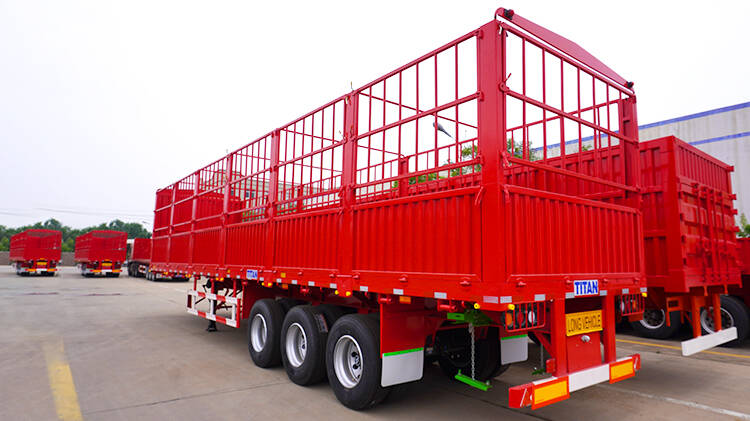

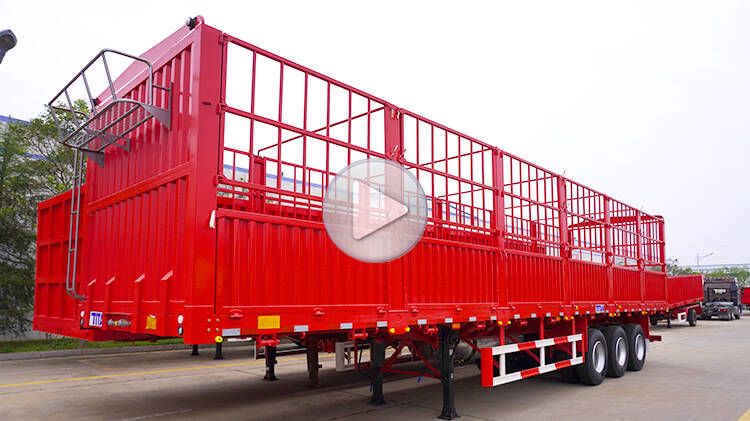

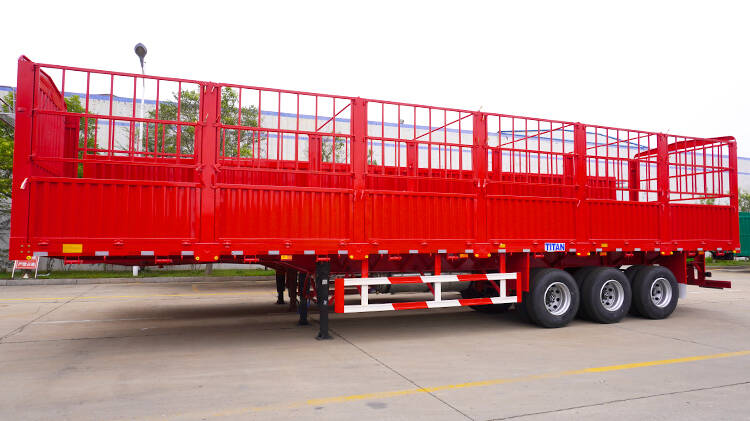

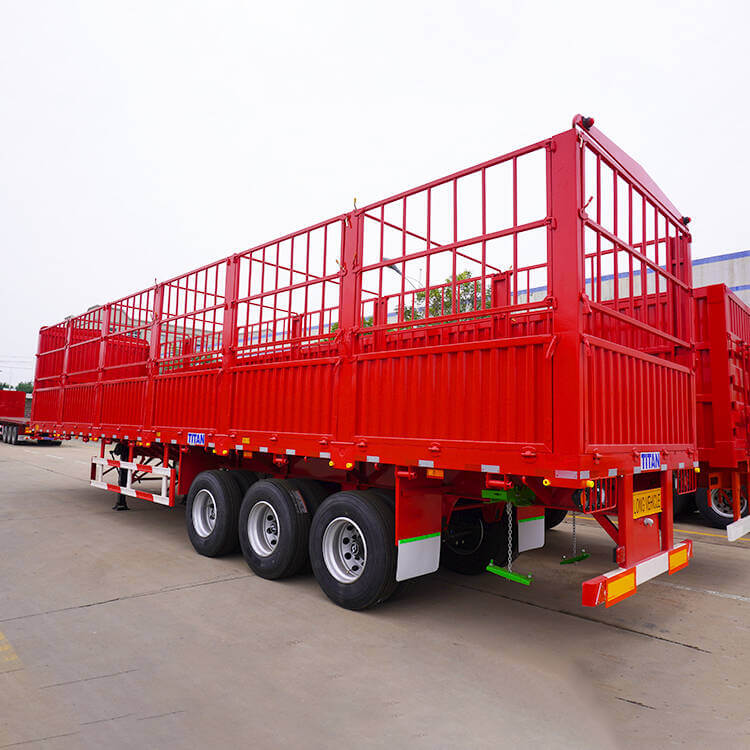

This 60ton fence cargo trailer has the advantages of strong carrying capacity, high transportation efficiency, various types of goods that can be transported, and flexible loading and unloading of goods. It is widely used in logistics, transportation, construction and other fields.
Why use a fence cargo semi trailer? Simply put, the front of the fence trailer needs to bear part of the weight of the trailer. The trailer's wheels are on the back and the front is on the trailer. The advantages of the fence cargo trailer are high stability, high speed and large loading capacity. Especially some large goods can only be pulled by trailers, and other trailers are not long enough.
3 Axle Fence Trailer | Fence Cargo Trailer for Sale Cost in Rwanda
3 Axle Fence Trailer | Fence Cargo Trailer for Sale Cost in Rwanda
1. The fence trailer has the characteristics of large capacity and high load. Its body length, width, and height can be adjusted according to transportation needs to meet various needs.
2. The fence cargo trailer adopts a multi-layer shelf design, which can store goods in the smallest space, thereby improving the loading capacity and transportation efficiency.
3. The fence trailer adopts measures such as partitions and fixing devices, which can effectively prevent the goods from being damaged due to bumps and collisions.
4. The fence cargo trailer can be equipped with different types of trucks according to different transportation needs, such as flat trucks, high and low trucks, etc., to meet various transportation needs.
Dimension(mm): 13000x2600x3420mm（depends on final design）
Trailer Sides: 1800mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,(FUWA/ BPW/ Huajing optional)
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Air suspension optional)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

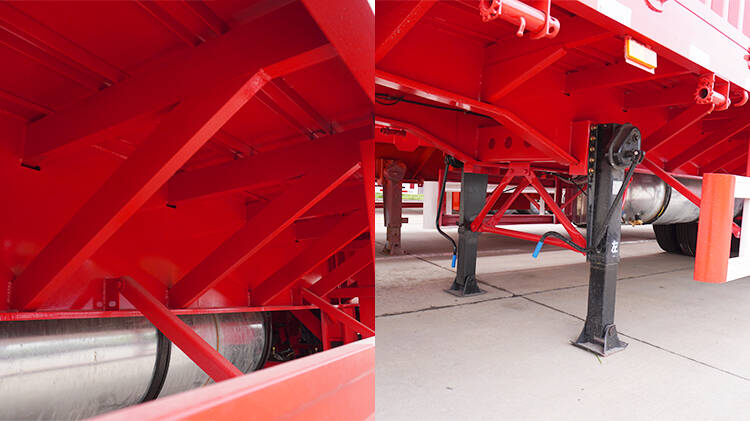

Landing Gear: JOST brand D200T or Standard 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
