Although this fence cargo trailer has a relatively long body length, it is also very flexible to drive, has a strong carrying capacity and a large cargo box capacity, and is suitable for long-distance transportation. It has become one of the more important means of transportation.
The longitudinal beam of fence cargo trailer for sale is welded with the integral through beam, which can balance the strength, stiffness and toughness of the frame and fully reduce the weight of the carriage under the condition of load. The structure is convenient to disassemble and the loading and unloading efficiency is high, which can improve the comprehensive economic benefits of road transportation.
Fence Cargo Trailer | Fence Cargo Semi Trailer for Sale Manufactures in Rwanda
Fence Cargo Trailer | Fence Cargo Semi Trailer for Sale Manufactures in Rwanda
Fence Cargo Trailer | Fence Cargo Semi Trailer for Sale Manufactures in Rwanda
1. The longitudinal beam of the fence cargo trailer is welded with the integral through beam, which greatly enhances the strength, rigidity and toughness of the frame.
2. Compared with the van, the loading capacity of the fence trailer is larger. Due to its own air permeability, the range of goods that can be pulled is wider than that of vans, and it is also more convenient to load and unload than vans.
3. This fence cargo trailer is made of high standard steel with high strength, good toughness and good fatigue resistance.
4. The fence cargo semi trailer has high driving flexibility, strong carrying capacity, and large container capacity, which is suitable for medium and long-distance transportation.
Dimension(mm): 13000x2600x3420mm（depends on final design）
Trailer Sides: 1800mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,(FUWA/ BPW/ Huajing optional)

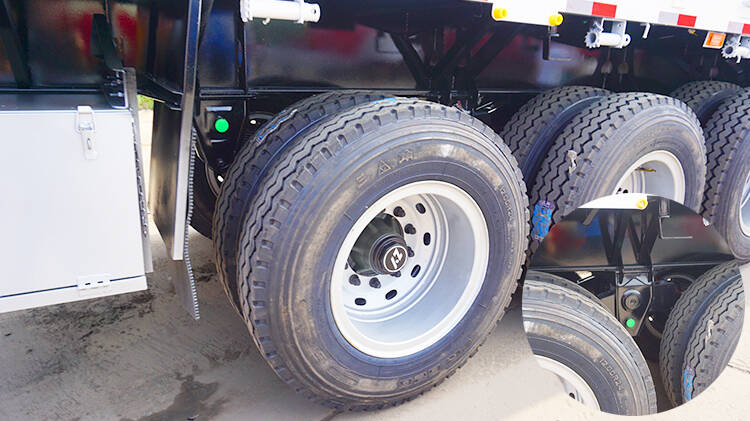

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Air suspension optional)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Standard 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
Light: LED light
Voltage: 24V
