This side wall semi trailer for sale has a higher side wall, which can accommodate more goods, and at the same time, it can better protect the goods and avoid the loss of goods during the transportation of some bulk goods.
3 Axle Side Wall Semi Trailer for Sale in Rwanda
3 Axle Side Wall Semi Trailer for Sale in Rwanda
1. The side wall semi trailer adopts a frame made of high-strength steel plates that meet international advanced standards, which ensures the overall strength of the frame and improves the load-carrying capacity of the frame.
2. The beam of the side wall semi trailer for sale adopts a W-shaped through-beam structure, which is in direct contact with the bottom plate, which improves the overall strength and reduces its own weight.

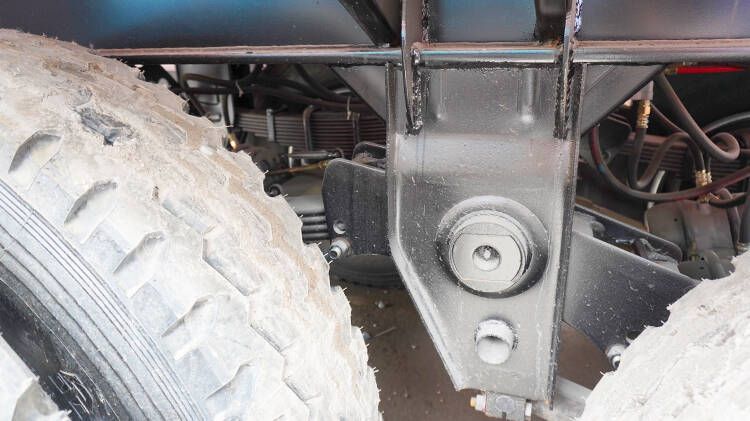

3. The 3 axle side wall semi trailer is made of four variable-section leaf springs made of highly elastic spring steel, which reduces its own weight while ensuring strength and elasticity.
Dimension(mm): 12500mm*2500mm*2750mm(depends on final design)
Trailer Sides: 1200mm, or box type sides
Loading capacity(ton): ≤50T
Axles: 3 axles, 13T/16T
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Standard 28tons
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
