This 3 axle tipper trailer has a wide range of applications and is suitable for the transportation of various bulk and scattered goods such as coal, ore, and construction materials.
The body of this hydraulic tipper trailer is made of high-quality materials, advanced technology and strict production process. The whole vehicle has reasonable structure, reliable performance, easy operation and beautiful appearance.
3 Axle Hydraulic Tipper Trailer for Sale Near Me in Rwanda
3 Axle Hydraulic Tipper Trailer for Sale Near Me in Rwanda
3 Axle Hydraulic Tipper Trailer for Sale Near Me in Rwanda
1. This tipper trailer adopts a rear-turning dump truck compartment, which can effectively improve the transportation efficiency of the handling machine for transporting bulk and scattered goods.
2. This hydraulic tipper trailer has a low center of gravity, so it is not easy to overturn when unloading.

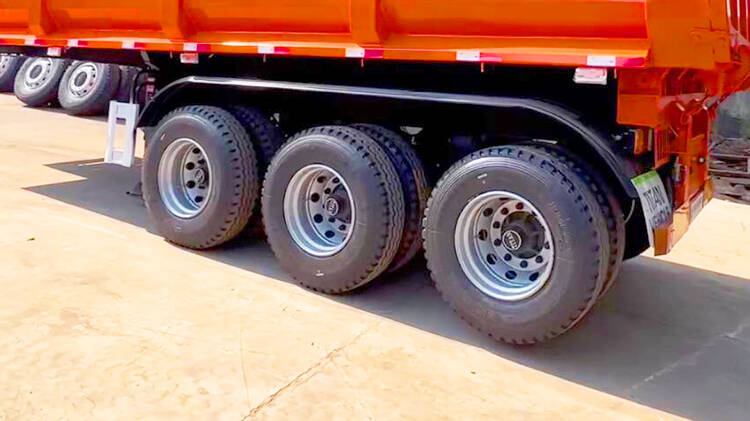

3. 3 axle tipper trailer suspension High-quality mechanical suspension (air suspension is optional) with reasonable structure, strong rigidity and strength.
4. The main components of the tip trailer for sale are processed by advanced equipment, with reliable quality and longer service life.
Inside dimension: 11280mmx2495mm x3970mm ( depends on final design)
Tare Weight (semi trailer): About 15600kg
Total volume(m³): 30-40m³ or less than 100tons
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA, BPW etc.
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: Standard 28ton or JOST brand
If you are interested in this 3 axle hydraulic tipper truck, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
