Dump trailers are very common in road transportation, and are mainly used for the transportation of bulk and scattered goods such as building materials, coal, ore. This dump trailer adopts the method of turning over and dumping, which can improve the transportation efficiency of bulk and scattered goods.
This 3 axle dump trailer is a new product of our company. This truck can realize the automatic handling of containers, which greatly saves manpower and material resources and improves the transportation efficiency of goods. It has the characteristics of high strength, strong lifting force, strong carrying capacity and no deformation .

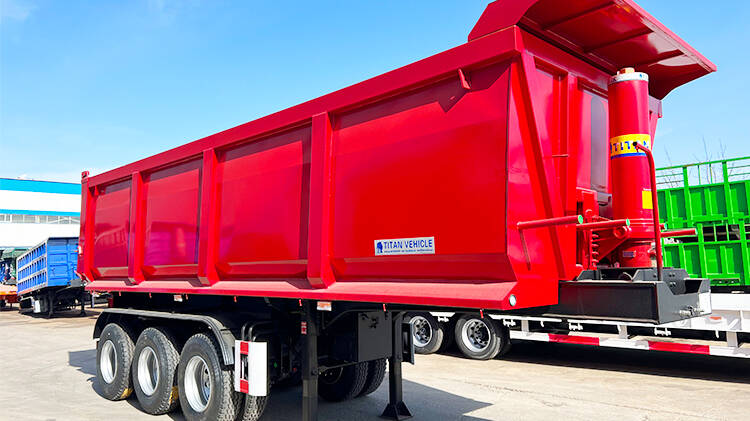

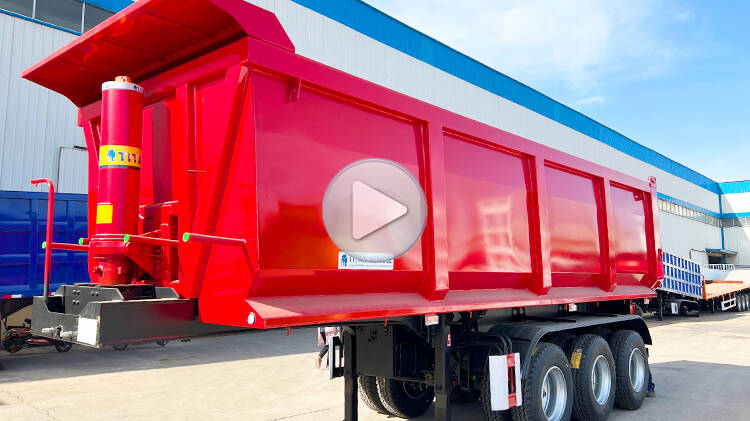

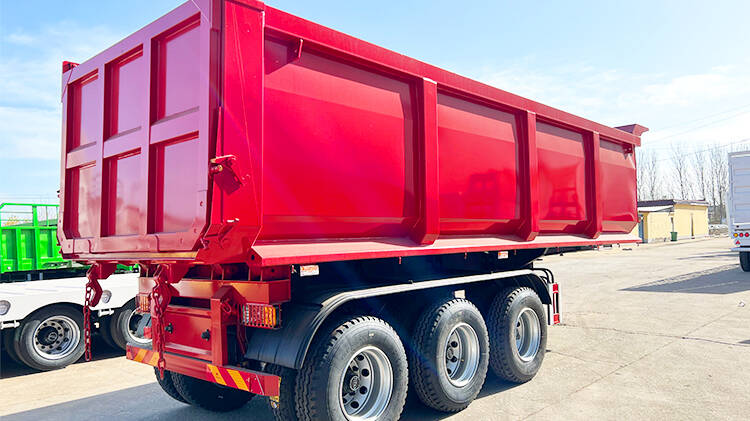

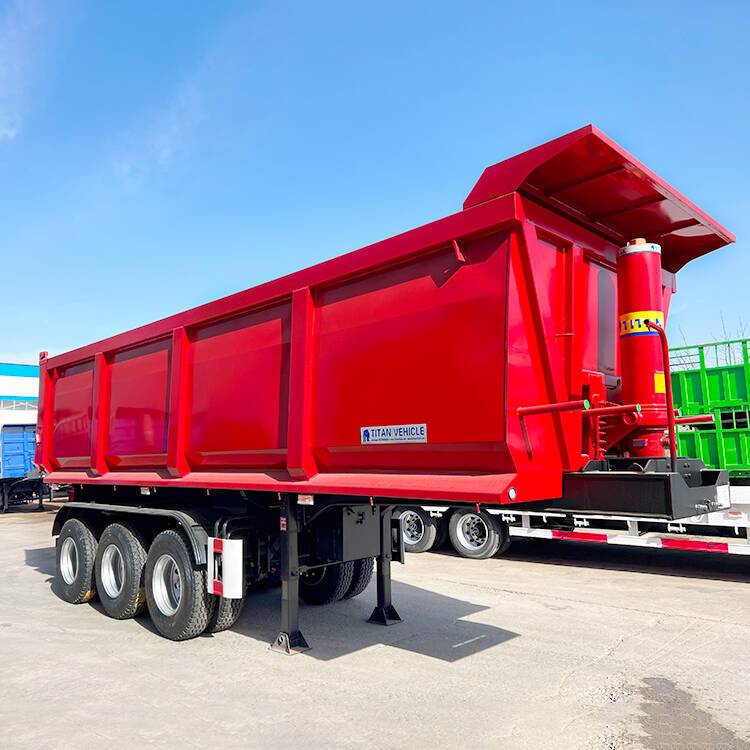

3 Axle Heavy Duty Dump Trailer for Sale Manufacture in Rwanda
3 Axle Heavy Duty Dump Trailer for Sale Manufacture in Rwanda
3 Axle Heavy Duty Dump Trailer for Sale Manufacture in Rwanda
1. The frame structure of this heavy duty dump trailer is composed of longitudinal beams and reinforced beams welded by high-strength steel. It has the characteristics of strong bearing capacity and is not easy to deform, which prolongs the service life of the dump trailer.
2. The load balance of each axis of the dump trailer and the reasonable design of the system tie rod angle greatly reduce the instantaneous friction slip distance between the tire and the ground and effectively reduce tire wear.
3. The 3 axle dump trailer adopts a new high-quality suspension system with high strength and strong impact resistance.
4. The axles of dump trailer for sale are made of high-quality axles, which are strong in load bearing and stable, and can adapt to various road conditions.
Inside dimension: 11280mmx2495mm x3970mm ( depends on final design)
Tare Weight (semi trailer): About 15600kg
Total volume(m³): 30-40m³ or less than 100tons
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA, BPW etc.
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

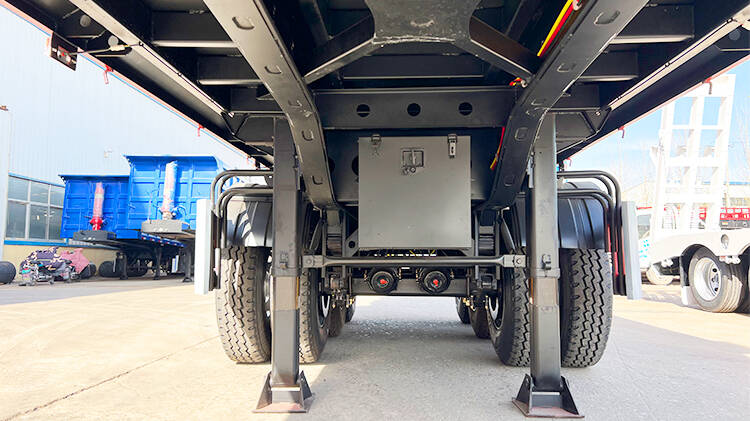

Landing gear: Standard 28ton or JOST brand
If you are interested in this 3 axle heavy duty dump trailer, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
