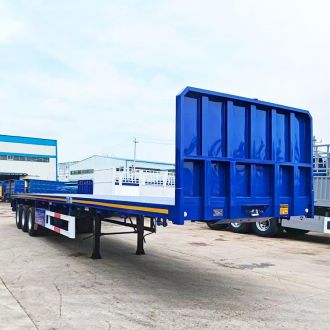

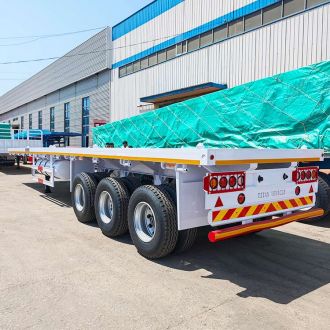

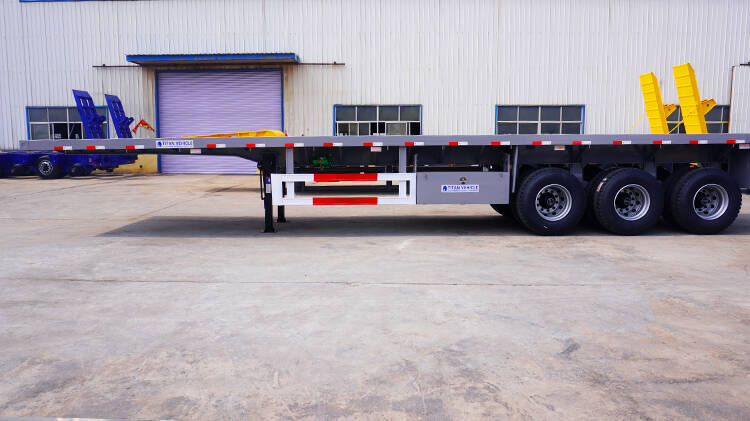

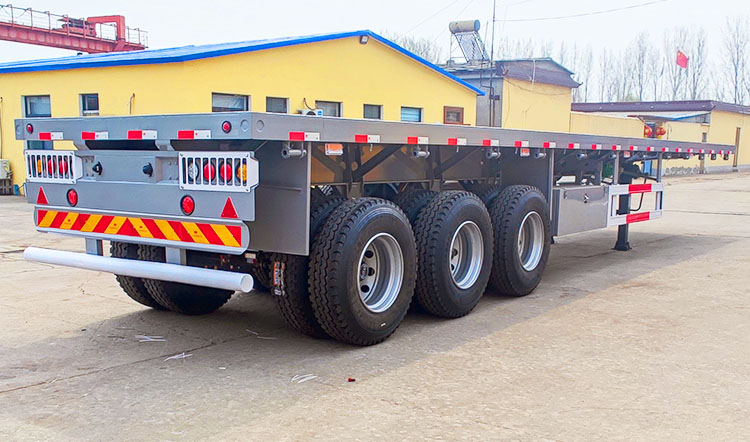

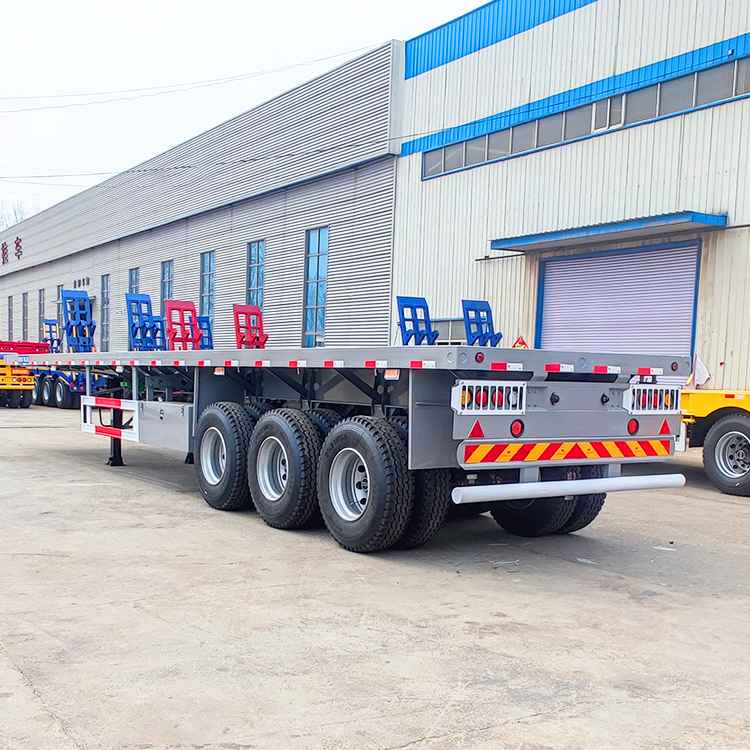

This 3 axle flatbed semi trailer for sale dimension is 12500m*2500*1530mm. This model can bear up to 60 tons.
Each trailer are equipped with 12 high-quality twist locks, soit can transport a 40ft container, or 2*20ft containers.

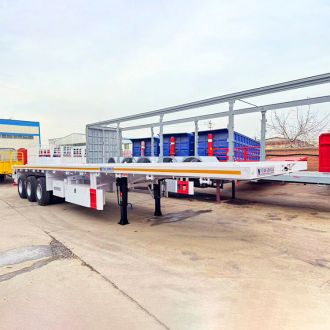

3 Axle 40 Ft Flatbed Semi Trailer for Sale Price in Rwanda

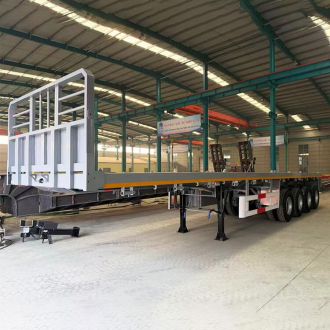

3 Axle 40 Ft Flatbed Semi Trailer for Sale Price in Rwanda
3 Axle 40 Ft Flatbed Semi Trailer for Sale Price in Rwanda
1. 40 ft semi trailer uses 3mm-thick T700 HSS to make the platform which can increase it bearing capacity.
2. We use 160 mm steel to produce the side beam of 40 ft semi trailer, which makes the trailer more strength.

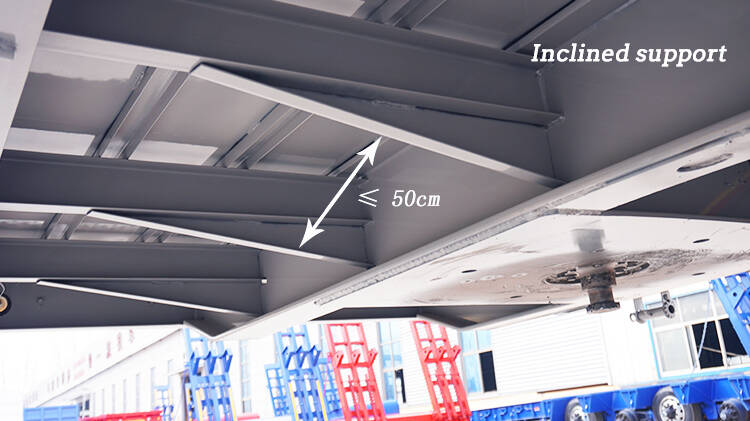

3. There are welded inclined supports on both sides of main beam, and the interval is no more than 50cm, it can sharing more load-bearing for the main beam and the platform, ensuring a longer life of the 40 ft semi trailer.
4. Many of our accessories are selected from well-known international brands, and the quality is guaranteed.
Model: 3 axle trailer
Dimension: 12500*2500*1530mm
Loading capacity: ≤60T
Axles: 3 axles, 13T axle ( with 16T braking pads )
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Platform: 3mm-thick HSS plate
Main Beam: Q345B steel, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Height: 500mm
Side Beam: Q235 steel
Twist Locks: 12 sets (lifting or screw type)
King Pin: JOST brand 2.0inch or 3.5inch
Landing Gear: Standard 28tons (JOST optional)
Brake system: WABCO
