The color scheme of the flat bed semi trailer for sale is newly upgraded, with beautiful and stylish appearance and longer lasting color. The flat bed semi trailer for sale size is 12500m*2500*1530mm, equipped with air suspension.
3 Axle 40 Foot Trailer Price | 40 Foot Flatbed Trailer for Sale in MICD
3 Axle 40 Foot Trailer Price | 40 Foot Flatbed Trailer for Sale in MICD
3 Axle 40 Foot Trailer Price | 40 Foot Flatbed Trailer for Sale in MICD
1. The color scheme of 3 axle trailer for sale is newly upgraded, with higher color rendering and longer color retention, the paint is not easy to fall off, and can better protect the car body.

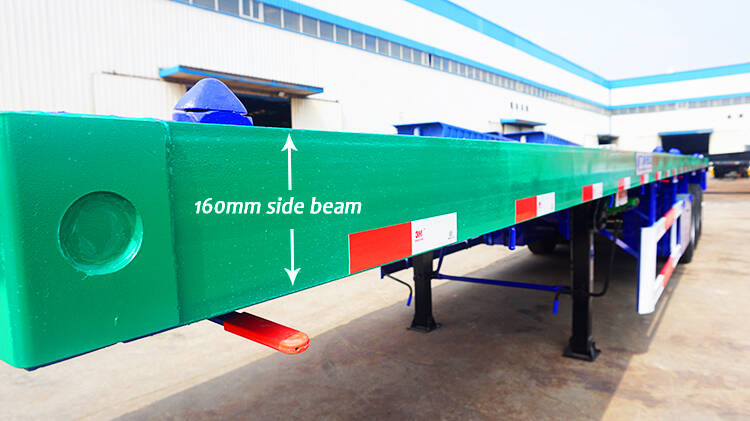

2. The height of the side beam of the 3 axle trailer for sale is 160mm wider to share more load for the platform, and it is not easy to deform during the process of transporting containers or other heavy objects.
3. 40 foot trailer adopt mechanical suspension with 10 pcs spring leafs.
4. The distance between the inclined supports on both sides of the main beam is small and the number is large, which increases the stability and support of the 40 foot trailer structure.
Model: 40 foot trailer
Dimension: 12500*2500*1530mm
Loading capacity: ≤60T
Axles: 3 axles, 13T axle ( with 16T braking pads )

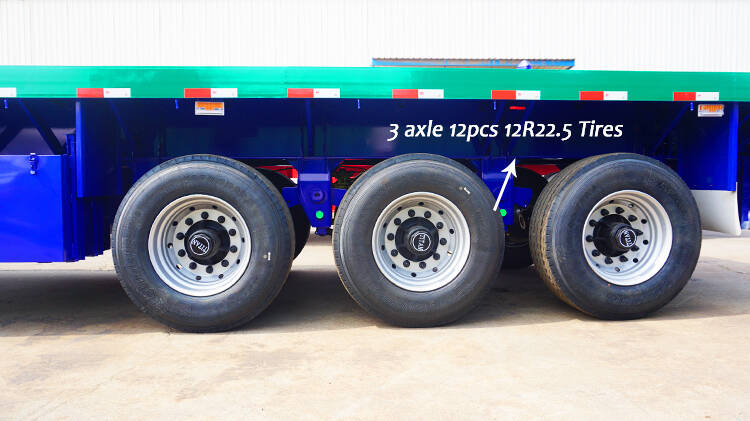

Tire: 12 pcs, 12R22.5
Rim: 12 pcs, 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Platform: 3mm-thick HSS plate
Main Beam: Q345B steel, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Height: 500mm
Side Beam: Q235 steel
Twist Locks: 12 sets (lifting or screw type)
King Pin: JOST brand 2.0inch or 3.5inch
Landing Gear: Standard 28tons (JOST optional)
Brake system: WABCO
