The Container chassis semi trailer is made of high-quality high-strength steel, which not only ensures high load capacity, but also achieves the advantage of light weight.
This Container chassis semi trailer is specially designed to transport containers of various sizes. One 20-inch, 40-inch or two 20-inch containers can be transported using the container skeletal trailer. You can configure as many twist locks as you want according to your needs.

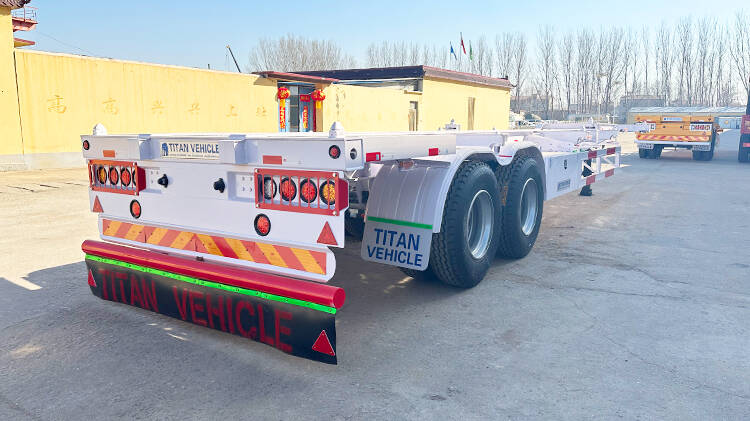

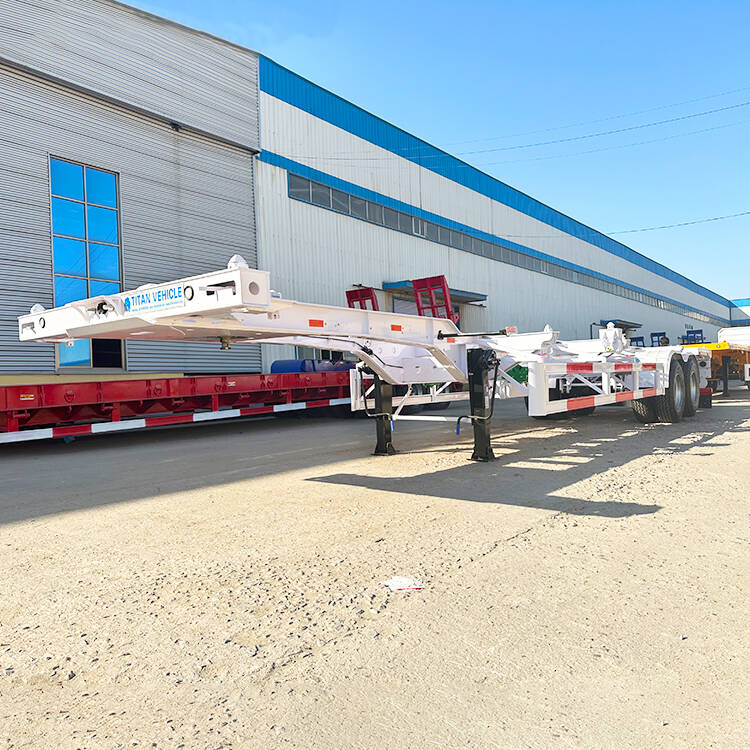

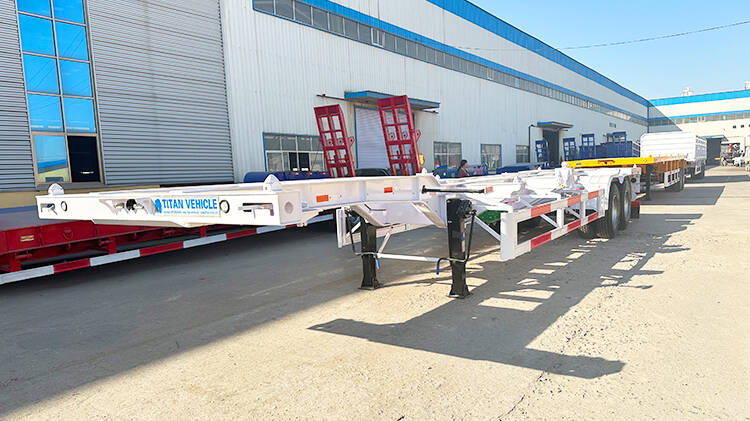

2 Axle Container Chassis Semi Trailer for Sale in Rwanda
2 Axle Container Chassis Semi Trailer for Sale in Rwanda
2 Axle Container Chassis Semi Trailer for Sale in Rwanda
1. Strong adaptability. Container chassis semi trailer can be used to transport many different sizes of containers. Its structural design is simple, stable and highly flexible.
2. Stable performance. Due to the high connection precision and reliable design of each component on the Container chassis semi trailer, it has good load-carrying capacity and handling performance. It runs smoothly during transportation and can maintain a high transportation speed, thereby improving the efficiency of logistics transportation.
3. Large load capacity. The container chassis semi trailer has a reasonable structure and effectively utilizes the space, and as the support point of the tractor of the semi-trailer is inside the wheel, which greatly improves its carrying capacity. This means that it can carry more goods, reduce transportation costs, and improve transportation efficiency while meeting traffic regulations.
4. Environmental protection and energy saving. Container chassis semi trailer has the characteristics of low emission and low fuel consumption, which is becoming more and more prominent in today's society with the theme of environmental protection. At the same time, adopting some new technologies, such as pneumatic braking system and tire pressure monitoring system, is more energy-saving and fuel-efficient, which can greatly reduce the energy consumption of the entire logistics process and reduce the corresponding operating costs.
Dimension(mm): 12500*2500*1550mm(depends on final design)
Loading capacity(ton): ≤40T
Axles: 2 axles, 13T/16T ,FUWA/ BPW

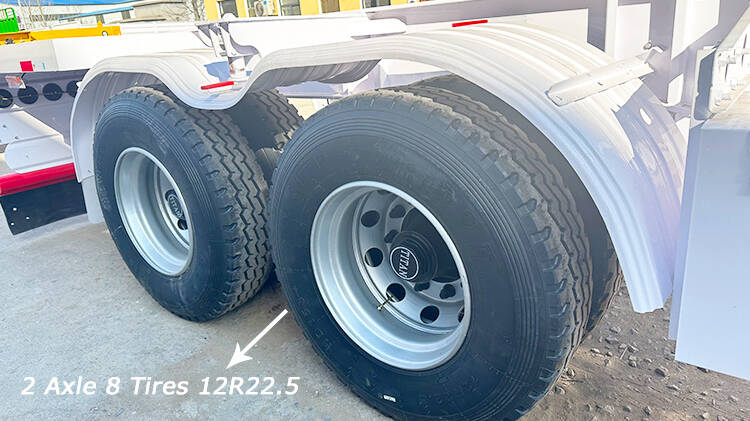

Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
King Pin: JOST brand 2.0 or 3.5 inch

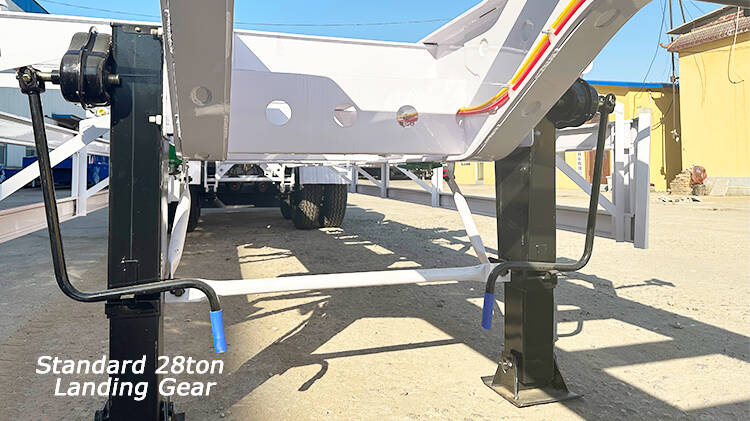

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m
If you are interested in this 2 axle container chassis semi trailer, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
