2 axle container skeleton trailer is specially designed to transport containers of various sizes. A 20" or 40" container can be shipped using the skeleton trailer. You can configure as many twist locks as you want according to your needs.

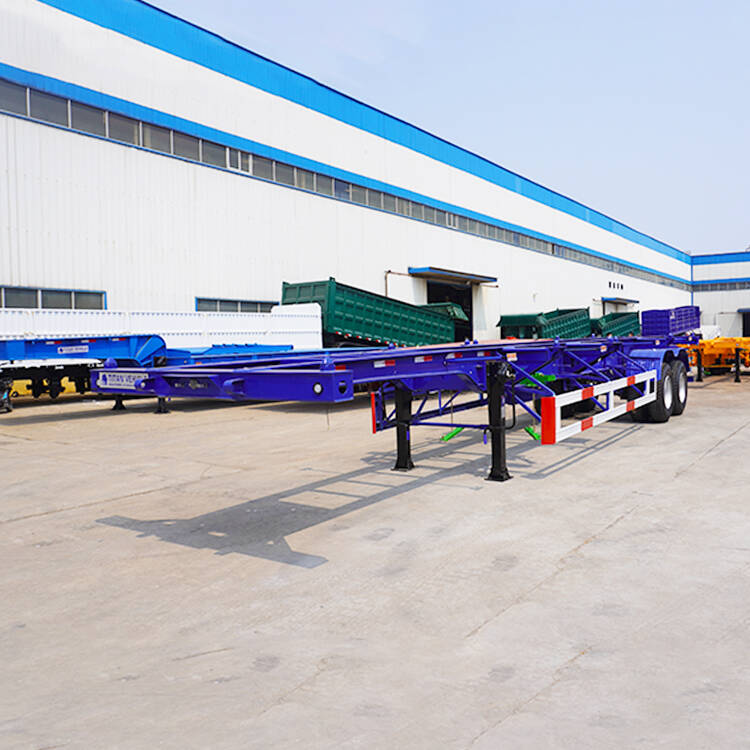

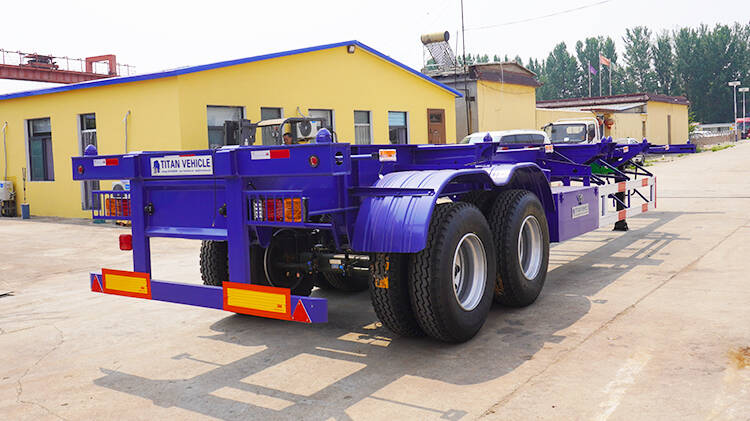

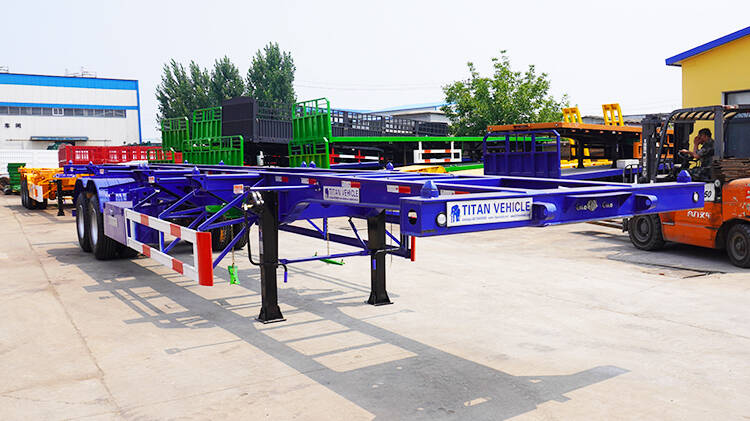

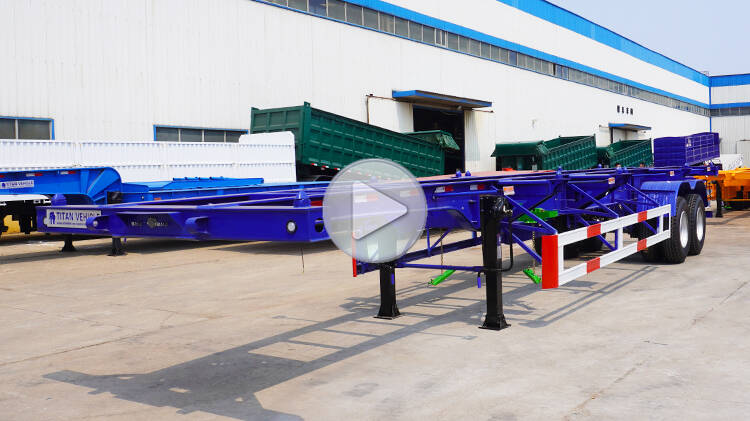

2 Axle 40 Foot Container Skeleton Trailer for Sale in Rwanda
2 Axle 40 Foot Container Skeleton Trailer for Sale in Rwanda
2 Axle 40 Foot Container Skeleton Trailer for Sale in Rwanda
1. This 2 axle container skeleton trailer has a light body, high flexibility and higher transportation efficiency.
2. This container skeleton trailer can configure the required number of twist locks according to your own needs, and can transport containers of different sizes.
3. This skeleton trailer for sale has simple body structure and low maintenance cost.
4. This container skeleton uses high-quality chassis, tires and suspension, which can adapt to various road conditions, drive stably and reliably, improve cargo safety and reduce cargo damage.
Dimension(mm): 12500*2500*1550mm(depends on final design)
Loading capacity(ton): ≤40T

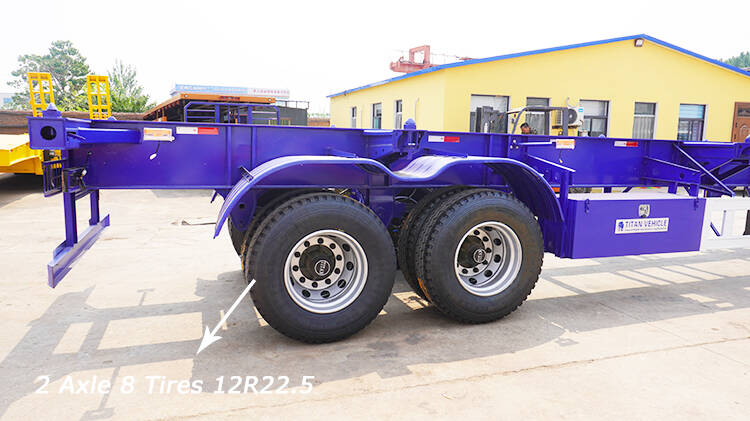

Axles: 2 axles, 13T/16T ,FUWA/ BPW

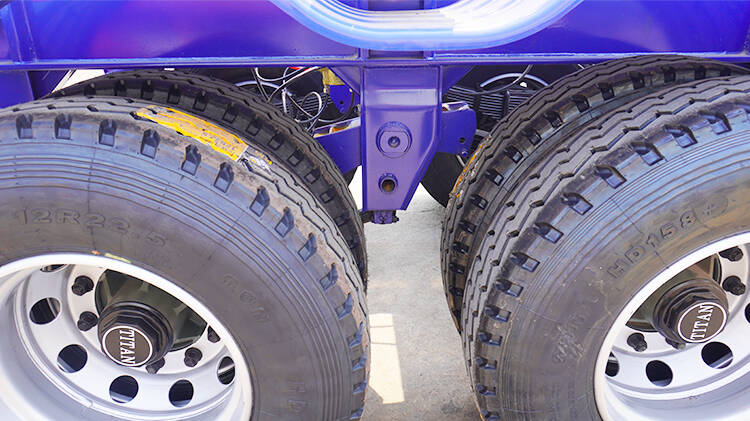

Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m
If you are interested in this 2 axle 40 foot container skeleton trailer, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
