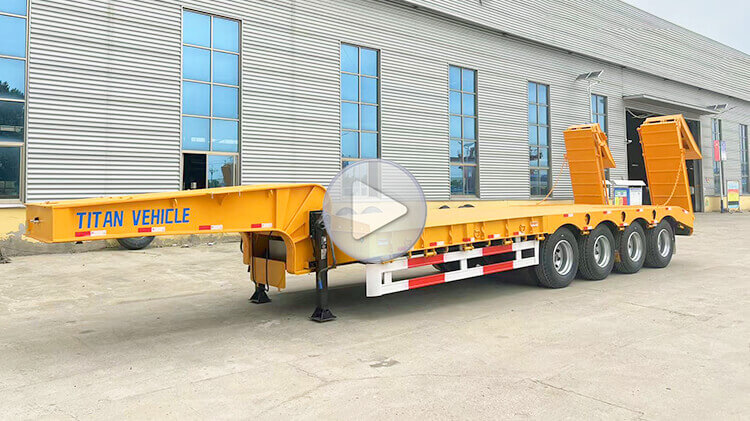

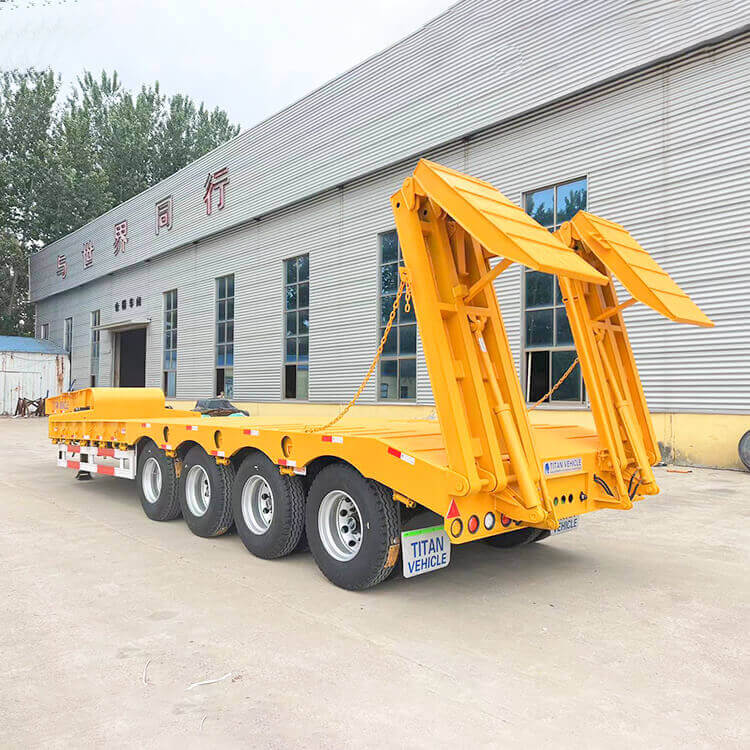

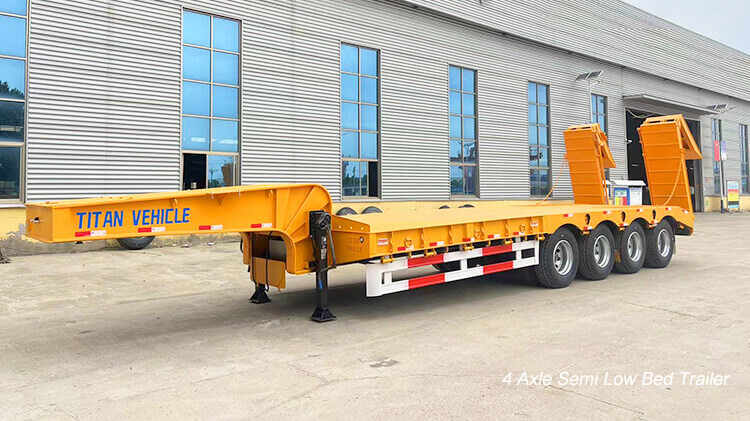

The 100ton 4 axle hydraulic lowbed trailer is suitable for the transportation of various long, wide and high goods, such as large-scale mechanical equipment, building materials, heavy machinery, etc., and is especially widely used in engineering construction, agricultural production and road construction.
The hydraulic lowbed trailer is a cargo tool commonly used to transport large machinery and equipment, which consists of chassis, tires, frame, body and other parts.

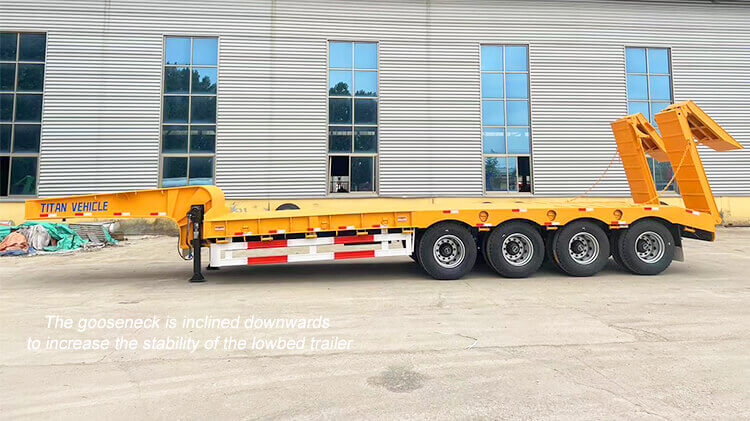

The cargo platform of the hydraulic lowbed trailer for sale is relatively low, and the body structure is relatively stable, which can be used to transport high mechanical equipment or goods, and accidents such as rollover are not easy to occur during driving.
The body structure of the 4 axle hydraulic lowbed trailer is made of high-strength steel, which has high load-bearing capacity and compression resistance. At the same time, the pattern on the cargo platform can increase friction and help the stability of cargo transportation.

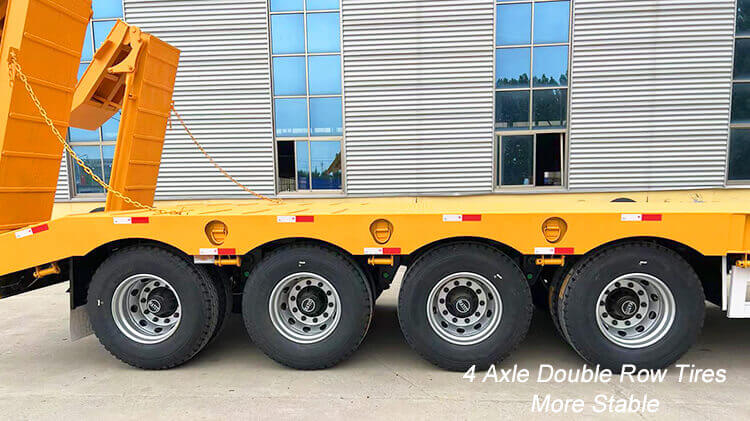

The hydraulic lowbed trailer with Max trailer adopts a multi-axle, double-row tire design to increase the contact area with the ground, thereby improving the bearing capacity and stability of the trailer.

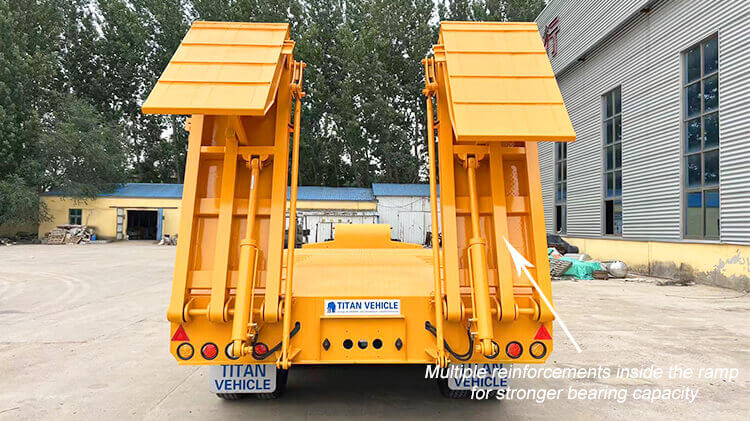

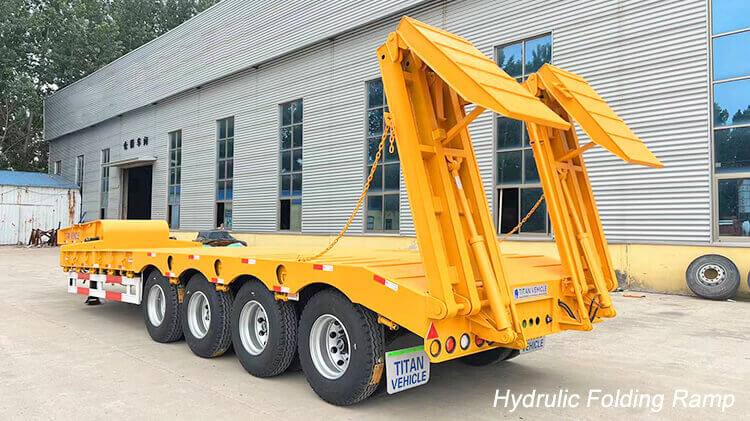

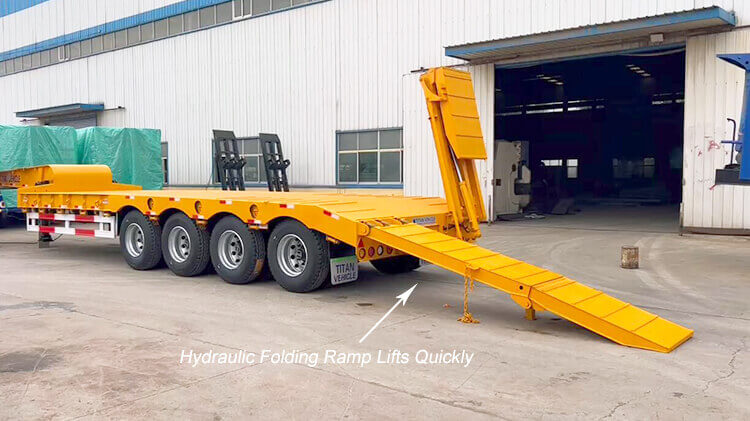

The lifting operation of the hydraulic ramp of the hydraulic lowbed trailer is very simple, which effectively improves the transportation efficiency, and the foldable hydraulic ramp is used to reduce the slope of the mechanical equipment on the cargo platform, reduce the difficulty, and improve safety.
The exterior of the 4 axle lowbed trailer for sale also adopts anti-corrosion coating, which can effectively prevent the body from rusting and corrosion, thereby prolonging the service life.
Model: 100t 4 Axle Hydraulic Lowbed Trailer for Sale in Rwanda
Dimension: 13000*3000*1700mm（depends on final design）
Capacity: ≤100T
Axles: 4 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 10pcs,16mm thick, 900mm wide
Platform: 5mm-thick checkered HSS plate
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Chinese Standard 28tons or JOST
If you are interested in this 4 axle hydraulic lowbed trailer, welcome to leave your message!
We will provide more details, quotations, catalogs, drawings, and videos for you!
