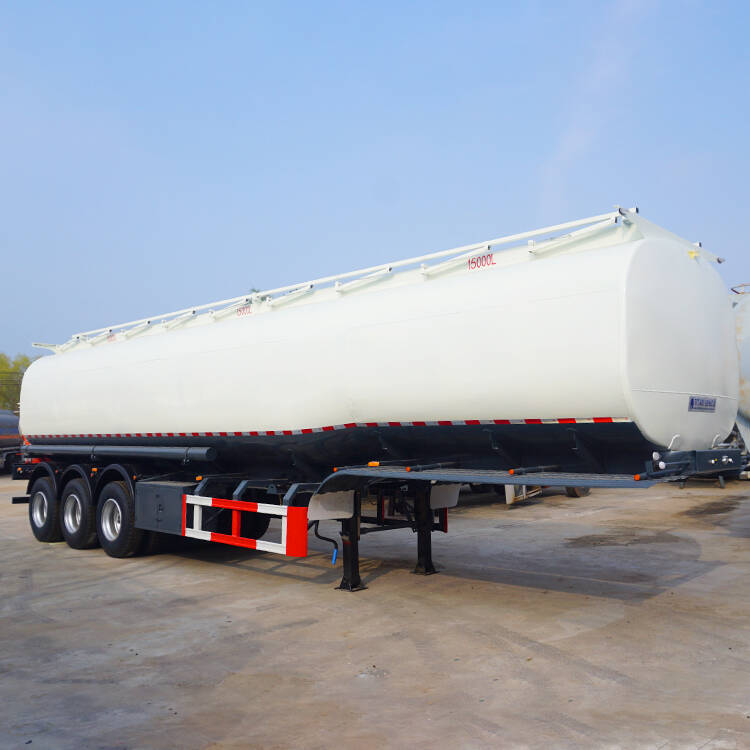

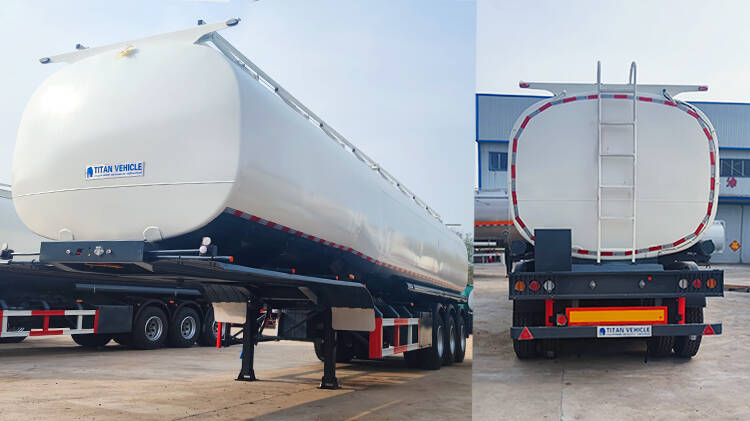

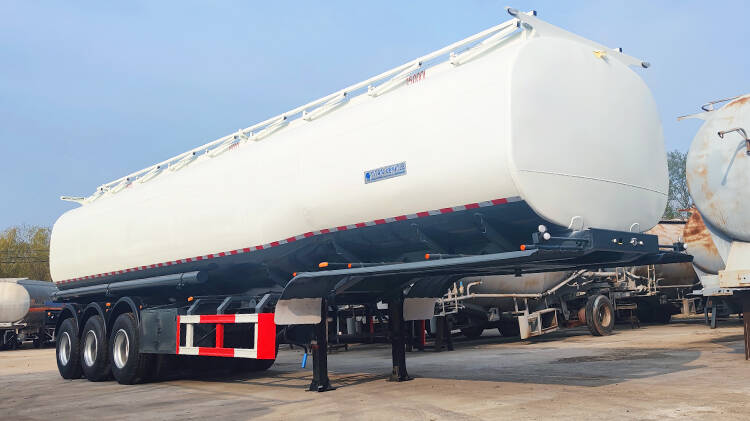

This 45000l fuel trailer for sale contains three compartments, each with a capacity of 15000l. Each tank is equipped with a bottom valve.
The tank body adopts the most advanced longitudinal welding technology, which reduces the number of tank welds and greatly improves the overall firmness of the tank body. Increase the service life of 45000L fuel trailer.
Tri Axle 45000L Fuel Tanker Trailer for Sale Price in Rwanda
Tri Axle 45000L Fuel Tanker Trailer for Sale Price in Rwanda
Tri Axle 45000L Fuel Tanker Trailer for Sale Price in Rwanda
1. The fuel tank body adopts professional canning technology and is formed at one time. Greatly increased the firmness of the tank body of the fuel tanker. Maximize the safety of the tank truck and increase its service life.
2. After production, we will carry out pressure test and metal inspection test to ensure good airtightness of the tank.
3. There are multiple thickened anti-wave plates in the tank to reduce the impact force generated by the liquid during transportation.

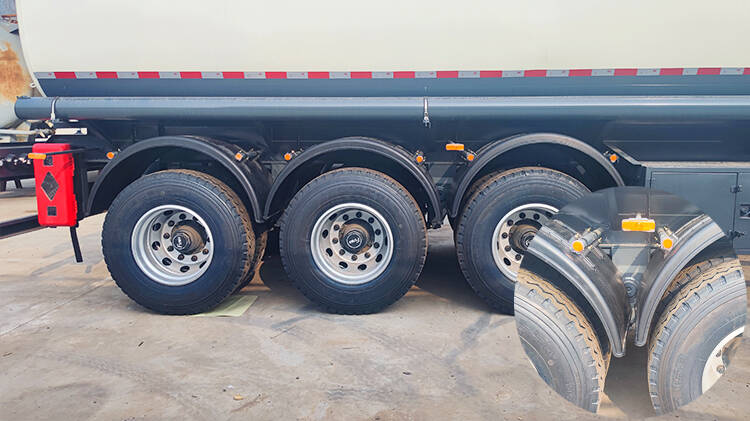

4. We will equip you with a 16-ton braking pad for a 13-ton axle, so that can make it braking effect better.
Model: 45000L tri axle fuel trailer
Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)
Volume: 45000L
Compartment: 3 (each 15000L)
Insulating layer: No
Tank Body Material: 5mm Stainless steel
End plate: 6mm Stainless steel
Manhole Cover: Stainless steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Axle: 3 axles, 13T (with 16ton braking pad)
Landing Gear: JOST(D200T) or Standard 28T
Suspension: Mechanical suspension
Leaf Spring: 90(w)mm*13(thickness)*10 layers
