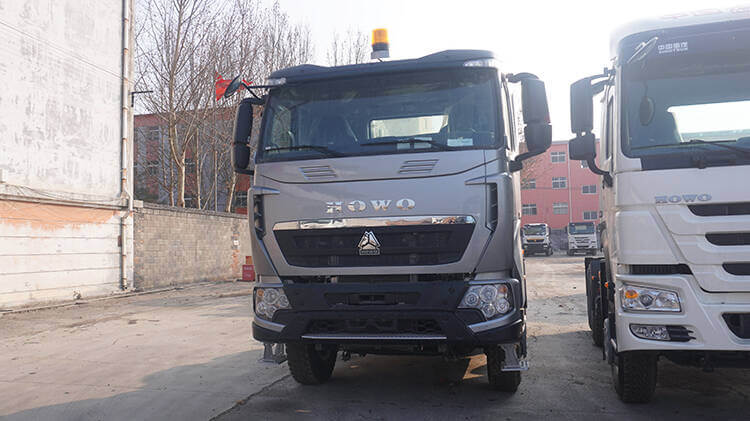

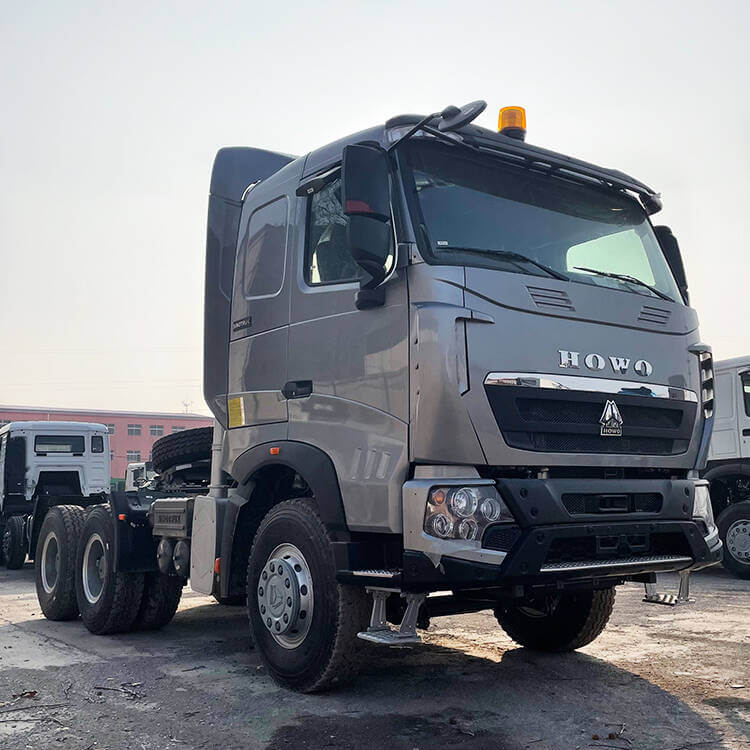

This howo t7h 6x4 truck head is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, adaptive to varied road conditions.
howo T series, the new generation products of high safety, reliability and economy, is manufactured by SINOTRUK by introductiong the German technology, manufacturing equipment and factory inspection standards and over 50 years' experience in manufacturing heavy-duty trucks.
Howo T7h 6x4 Truck Head for Sale in Rwanda
Howo T7h 6x4 Truck Head for Sale in Rwanda

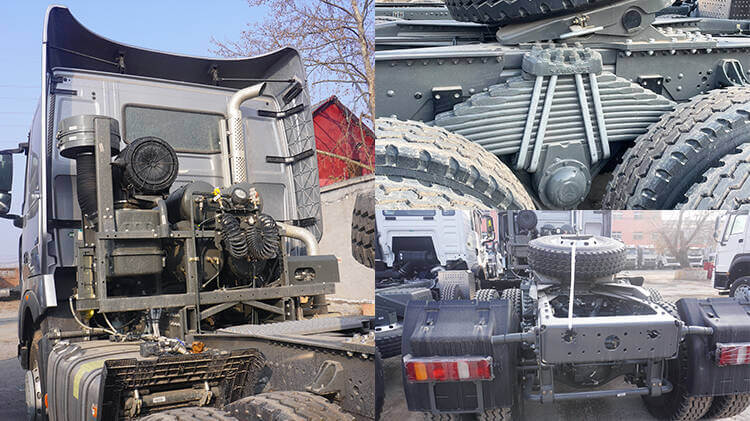

1. The advanced frame makes the vehicle lighter in weight, more reasonable in structure and more reliable in performance. T7H series howo truck head is compatible with internationally leading and domestically unique suspensions, which are 400KG lighter than ordinary leaf spring suspensions and feature maintenance-free.
2. The turning radius is small, the direction change is accurate, the braking system responds quickly, and the driving safety is improved.
3. The cab of howo truck head has a large space and sound insulation, so that the driver can feel comfortable even on long-distance driving.
4. This howo truck head has sufficient power and stable performance, and can adapt to various road conditions.
MODEL: ZZ4257V3241W
ENGINE:
Engine model: D12.42-20, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system
Maximum output: 420PS (309kW) at 2000 rpm
Maximum torque: 1820Nm at 1100-1400rpm
Bore: 126mm
Stroke: 155mm
Displacement: 11.596L
Clutch: SINOTRUK’s 420C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION:
Transmission, model HW19710, 10 forward and 2 reverse
Ratio: 4.42 4.8 5.73
Front Axle: New HF9 series, with drum brake system
Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering: ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab: Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, warming light
