A dump truck is a kind of truck, which is a truck that can automatically dump the cargo compartment behind it. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and other parts.
The most common type of dump truck is the one with the carriage turned backwards, and the cargo is unloaded by pushing the piston rod to tip the carriage.
Dump trucks often work in conjunction with excavators, loaders, belt conveyors and other machinery to load and unload earth, gravel, and bulk materials.
Howo Truck Price | Howo 6x4 Dump Truck for Sale Cost in Rwanda
Howo Truck Price | Howo 6x4 Dump Truck for Sale Cost in Rwanda
Howo Truck Price | Howo 6x4 Dump Truck for Sale Cost in Rwanda
1. The chassis device is solid and durable, with strong power, which can meet the needs of different working conditions.
2. The driving noise is small, and the driving environment is more comfortable.
3. The braking interval is shorter, the braking speed is faster, and the driving is safer.
4. With excellent shock absorption system. Leaf springs are installed on the suspension of the chassis, which not only enhances the bearing capacity, but also strengthens the shock absorption.
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1

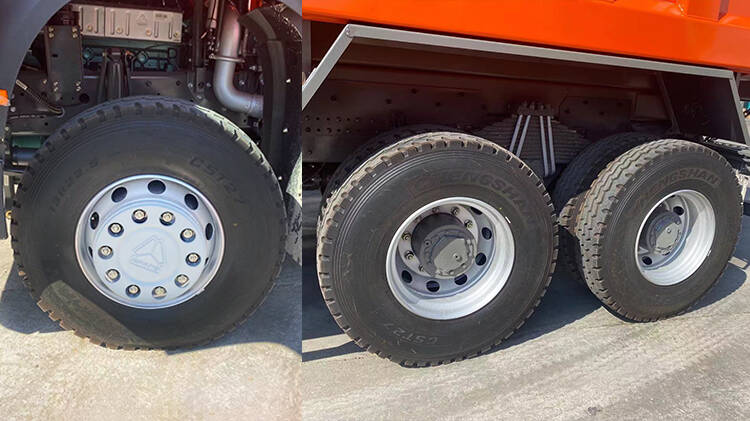

WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 13R22.5
CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Middle lift system (Other sizes are optional)
